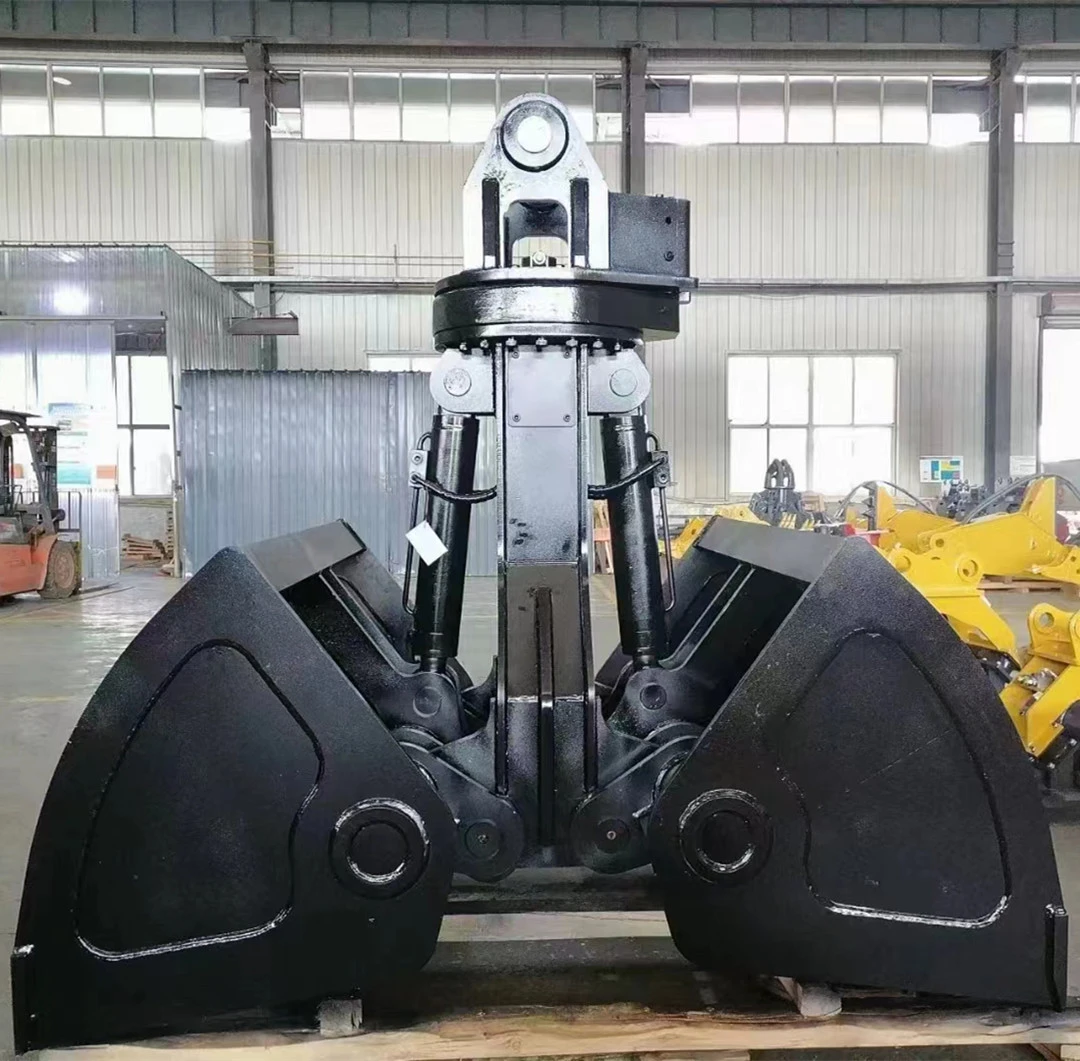

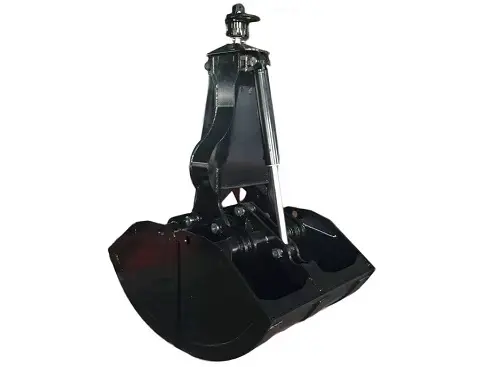

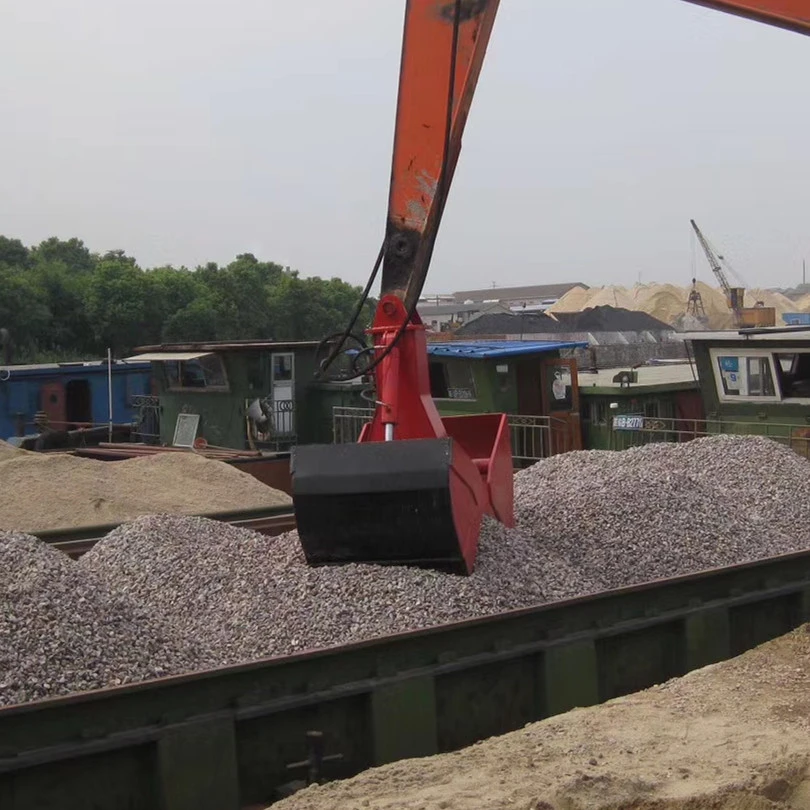

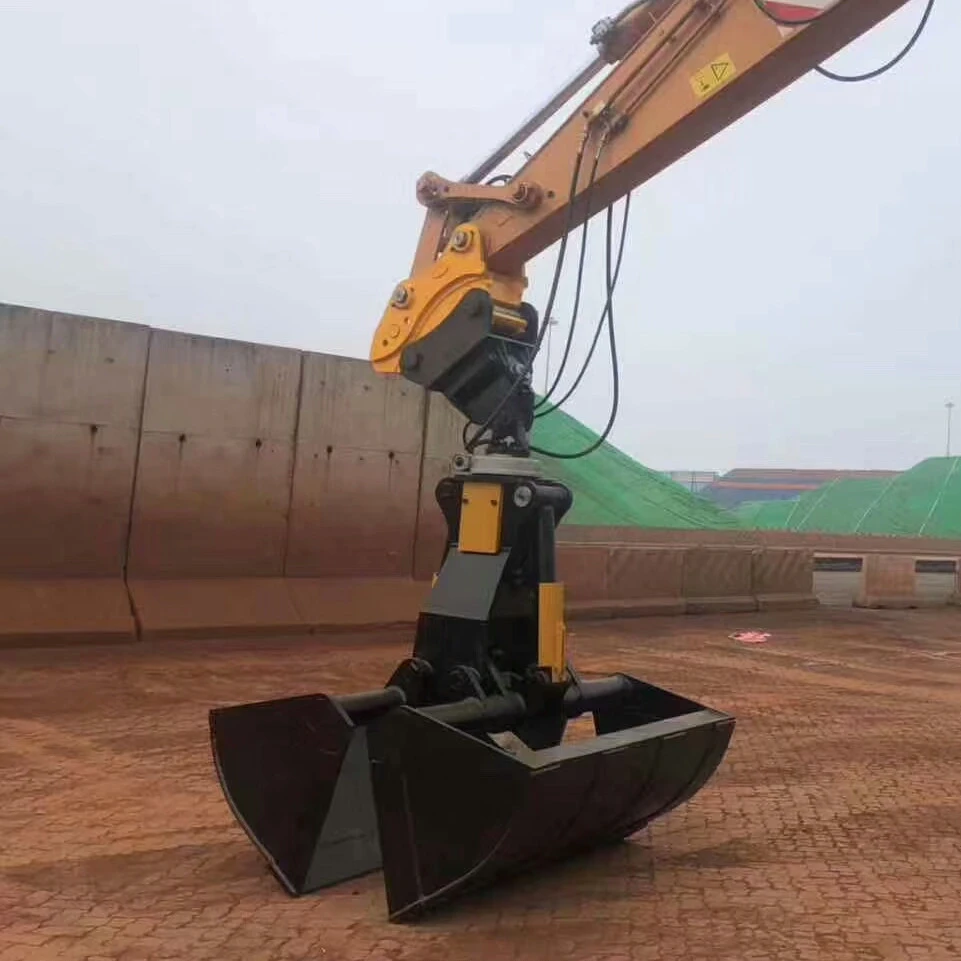

Clamshell bucket is the best tool for digging and loading soil, sand, coal, iron and similar materials. We supply various models for 3-40 ton excavators, each of model has been designed to provide the maximum level of performance based on the different material being handled. The rotary motor and cylinders are made of high-quality materials, and the blade is wear-resistant steel, the pins and bush are heat treated which is more harder, all these durable parts ensure long working life even on the tough working environment. SC Equipment manufacturer excavator bucket attachments with custom solutions and competitive prices.
Custom Clamshell Bucket Designs is Available.
Large bore of cylinders ensure its grips power.
Rotary type, fix type is available.
Steelwork and is made of wear-resistant steel NM500.
0.78-2.62 yards capacity for 3-40 ton excavators is available.

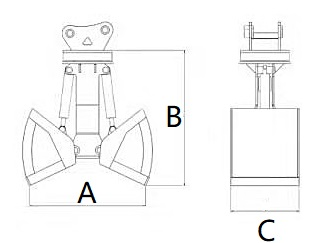

| Specification | Unit | SC03 | SC06 | SC10 | SC15 | SC17 |
| Max jaw opening A | mm | 1000 | 1300 | 1800 | 2250 | 2350 |
| Capacity | m³ | 0.3 | 0.6 | 1.2 | 1.5 | 1.8 |
| Applicable excavator | ton | 5-8 | 8-12 | 12-21 | 20-30 | 30-40 |
| Overall height B | mm | 1200 | 1500 | 1700 | 1950 | 2150 |
| Overall width C | mm | 890 | 1050 | 1200 | 1300 | 1500 |
| The above clamshell bucket can be fitted with 360 degree rotation. | ||||||
