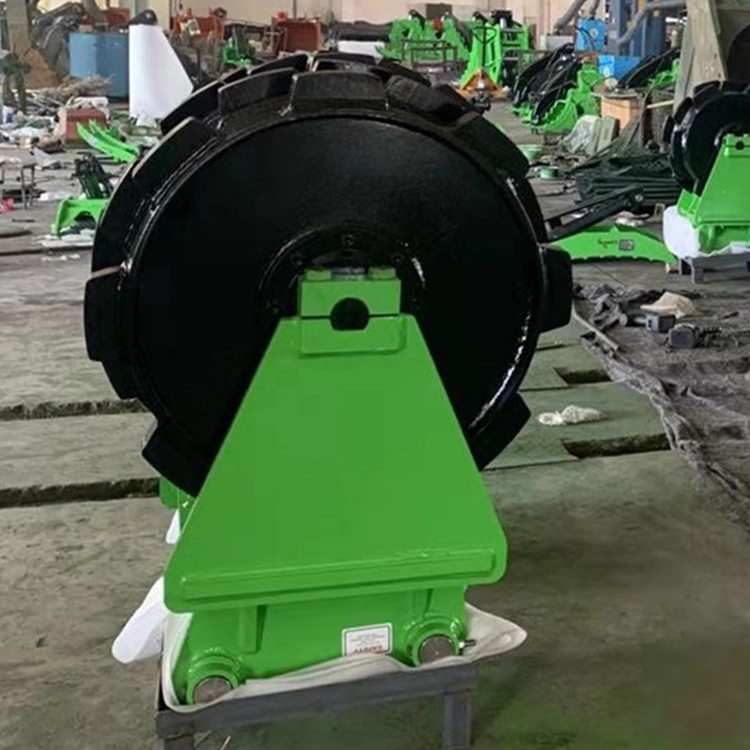

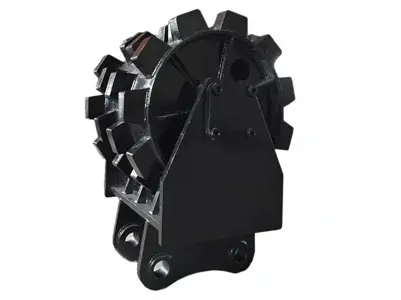

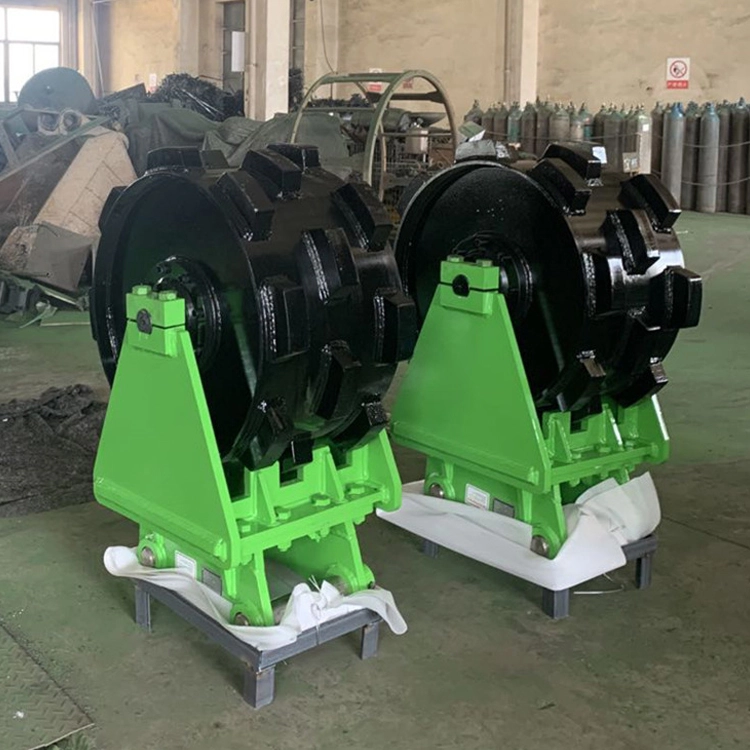

Excavator Compaction Wheel is mechanical tool without hydraulic-driving. It’s compaction force come from excavator’s own weight. With separate foot, the Excavator Compaction Wheels can deliver maximum penetration which can be better compaction wet sticky soils but avoiding Soil Bridging, it works from the bottom up, eliminating bridging while breaking soil and filling in the voids. The mixing and kneading action of the wheel produces a more uniform soil consistency for better compaction.
Simple design compacts a variety of soils with maximum speed and efficiency.
Fully sealed self-aligning bearings to ensure longer product life
Self-cleaning design prevents soil buildup.
Heavy duty durable design with bearing protection
Size range from 3 - 35 tonne excavators
| Specification/Model | SC08 | SC12 | SC20 | SC30 |
| Excavator Range/ton | 5-8 | 10-15 | 18-29 | 30-40 |
| Wheel Diameter/A | 680 | 840 | 1030 | 1110 |
| Compaction Width/B | 310 | 400 | 560 | 680 |
| Number of Pads | 18 | 24 | 36 | 36 |
| Overall Length/C | 680 | 840 | 1030 | 1110 |
| Overall Height/D | 765 | 935 | 1145 | 1230 |
| Overall Width/E | 466 | 595 | 796 | 941 |
| Operating Weight/Kg | 330 | 640 | 1210 | 1780 |
