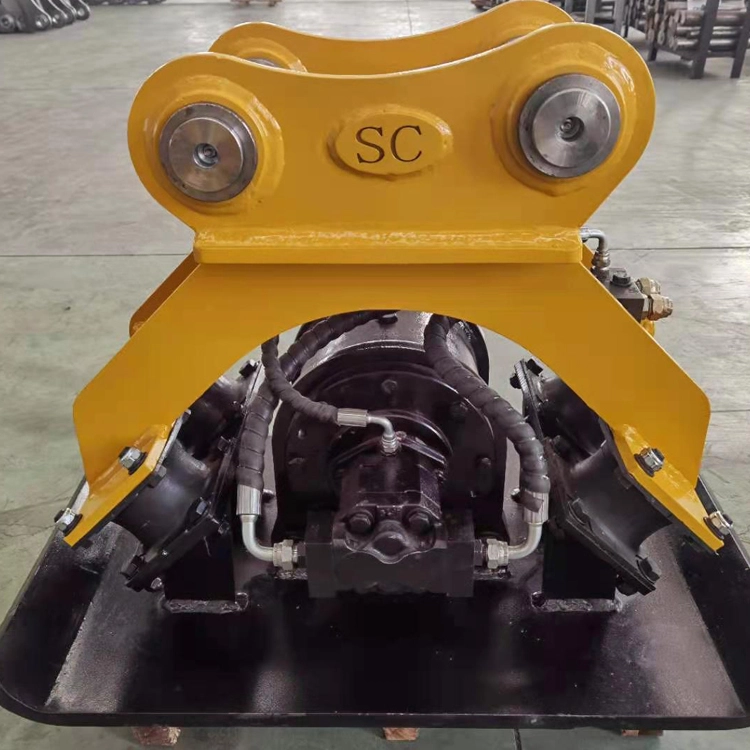

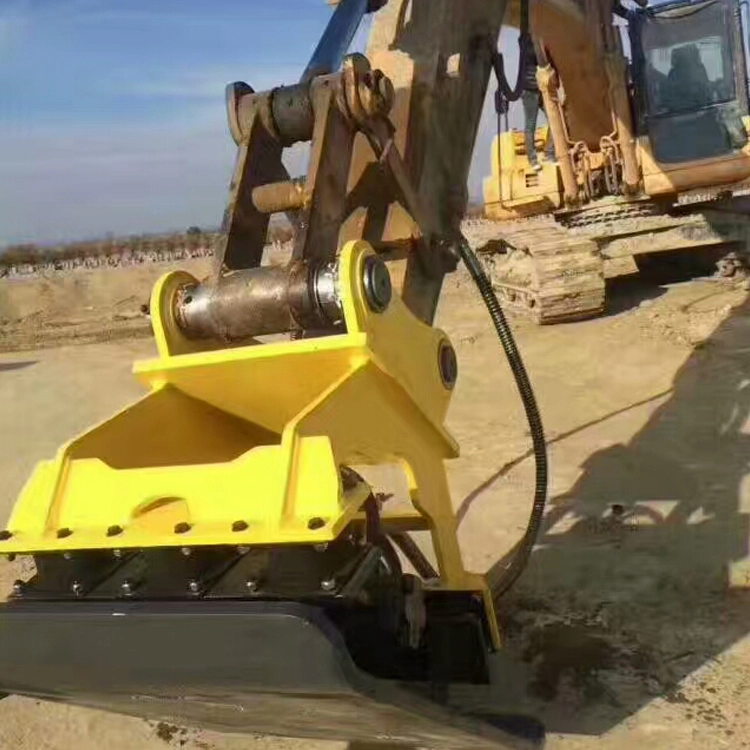

SC Hydraulic Compactor plate is the perfect tool for soil compaction in trenches, foundations or slope applications. Compare hand-operated compactor, our vibrating compactor can work productively next to any jobsite as long as the excavator arm can reach, which ensuring workers safety. SC compactor equipped high quality motor which have very good compaction performance.
Great for trenching, ground leveling and embankment construction

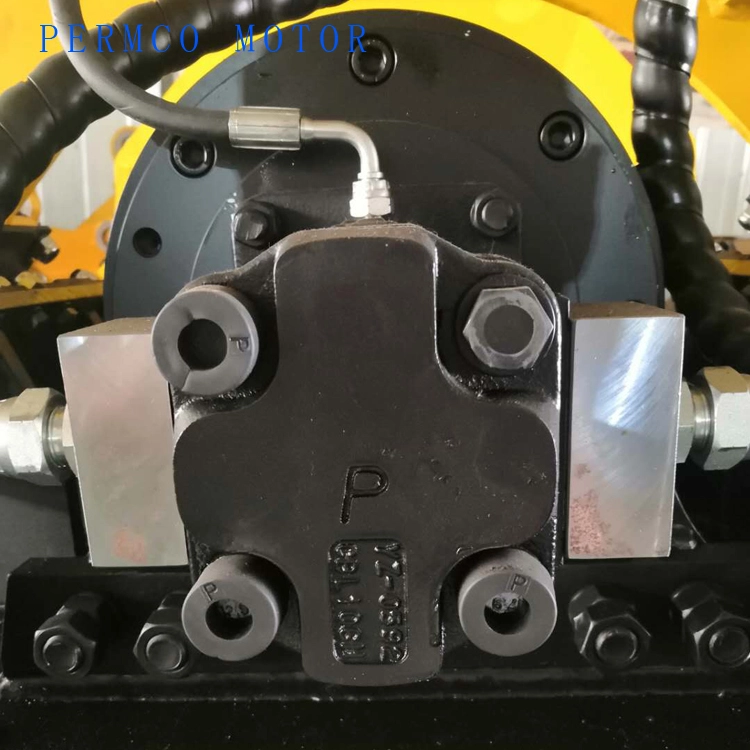

Drived by PERMCO vibrating motor with greater vibration forces
Advanced technology for low vibration and noise
Safe, Versatile, And Efficient Performance
Fully sizes for mini excavator and backhoe
One-year limited warranty
| Model | Unit | SC300 | SC600 | SC800 | SC1000 |
| Impact force | Ton | 4 | 6.5 | 15 | 15 |
| Vibration frequency | Rpm | 2000 | 2000 | 2000 | 2000 |
| Oil flow | L/min | 45-75 | 85-105 | 120-170 | 120-170 |
| Operating pressure | Kg/cm² | 100-130 | 100-130 | 150-200 | 150-200 |
| Weight | kg | 400 | 750 | 1000 | 1100 |
| Plate measurement | Lx M x T(mm) | 900x550x25 | 1160x700x28 | 1350x900x35 | 1350x900x35 |
| Height | mm | 760 | 920 | 1060 | 1100 |
| Width | mm | 550 | 700 | 900 | 900 |
| Excavator | Ton | 4-9 | 11-16 | 17-23 | 23-30 |
