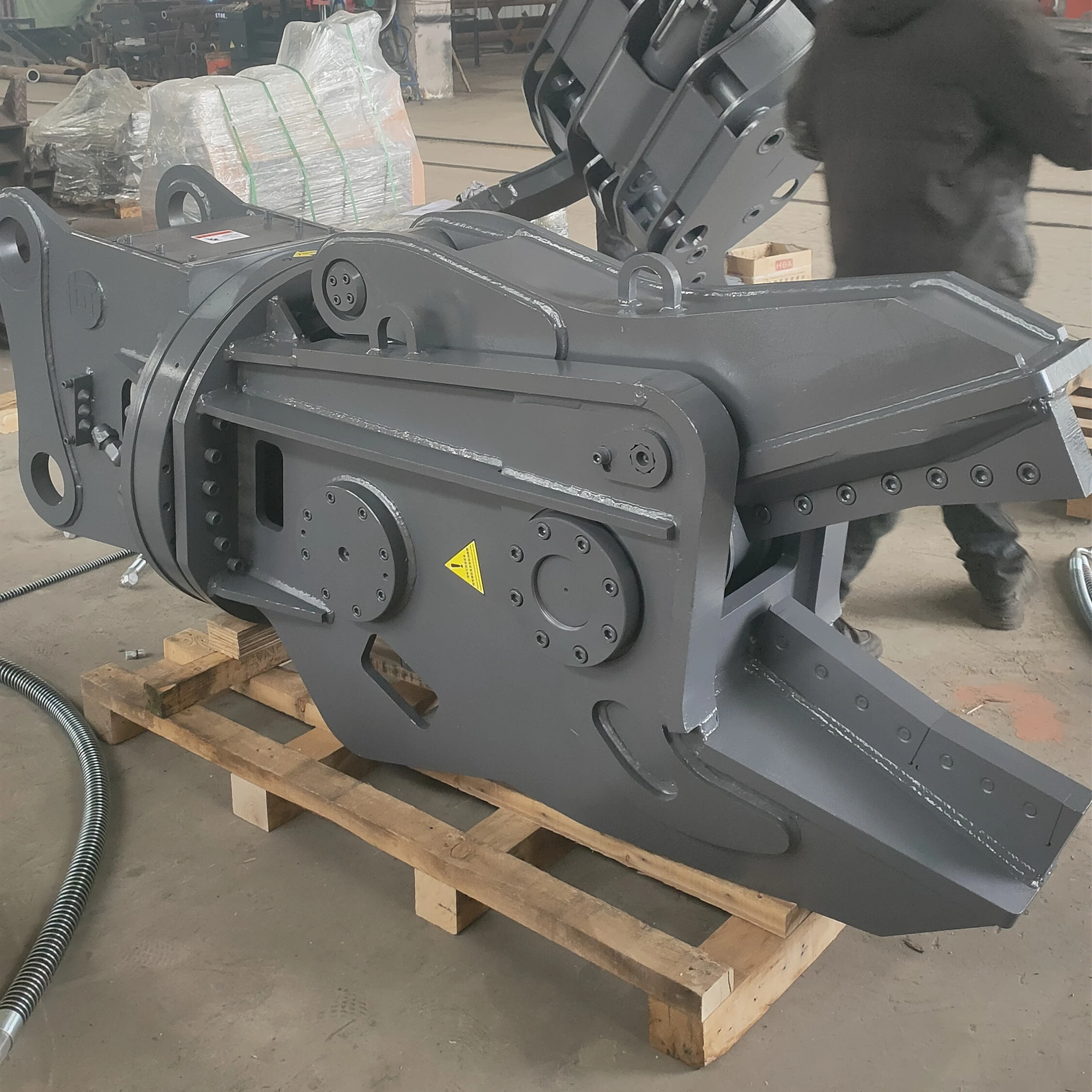

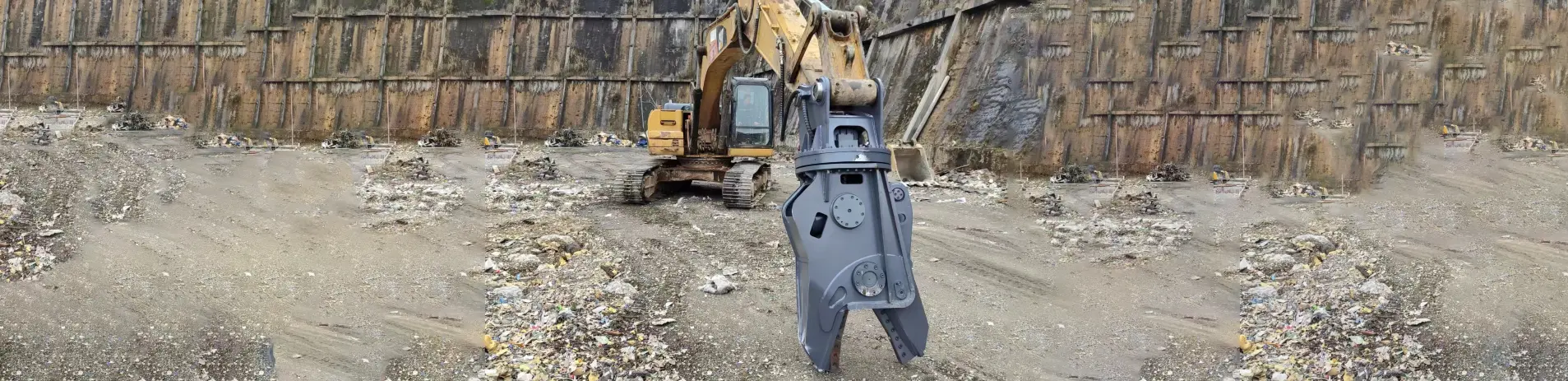

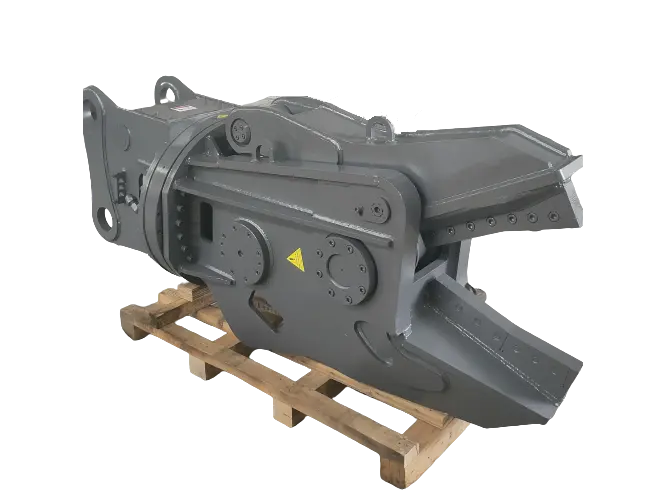

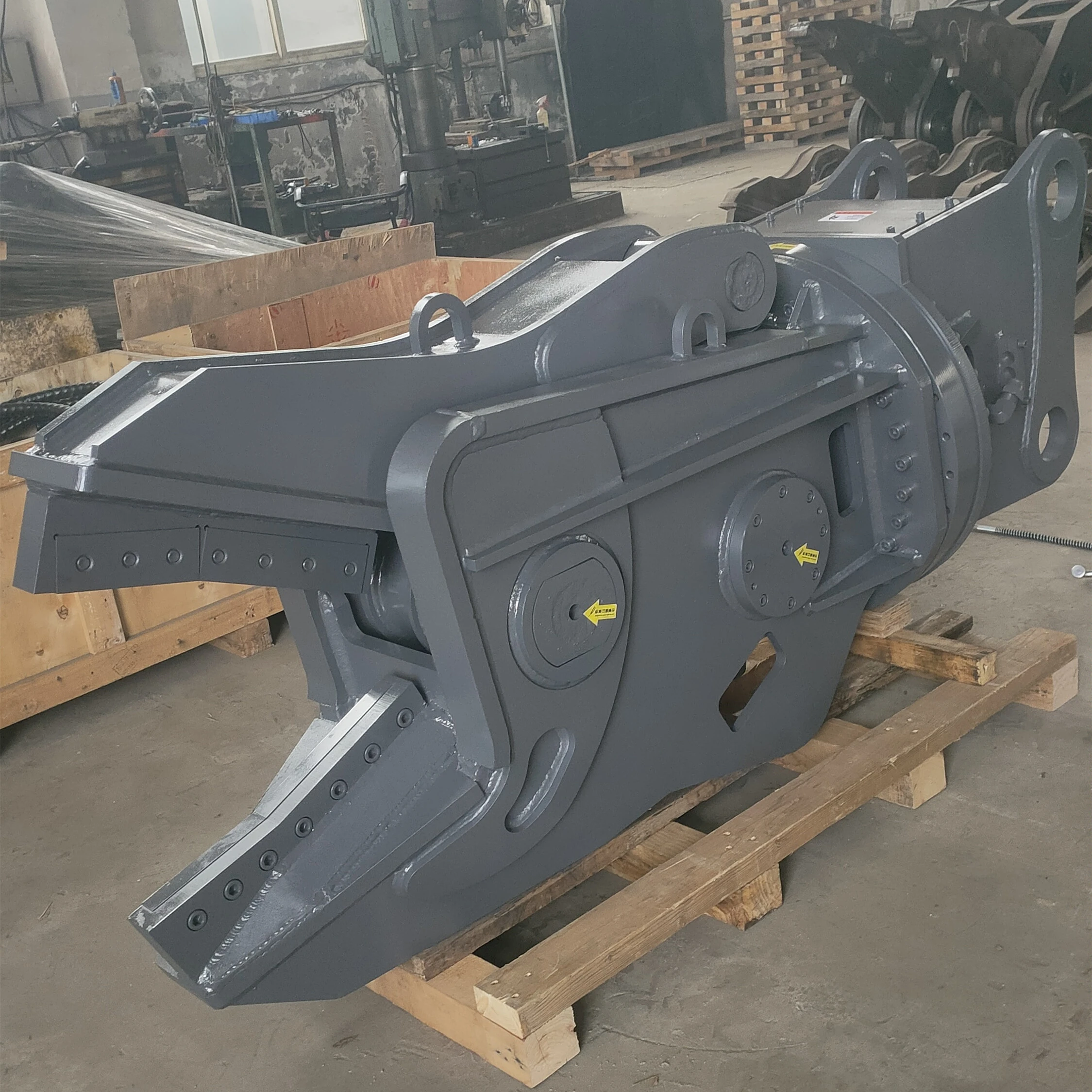

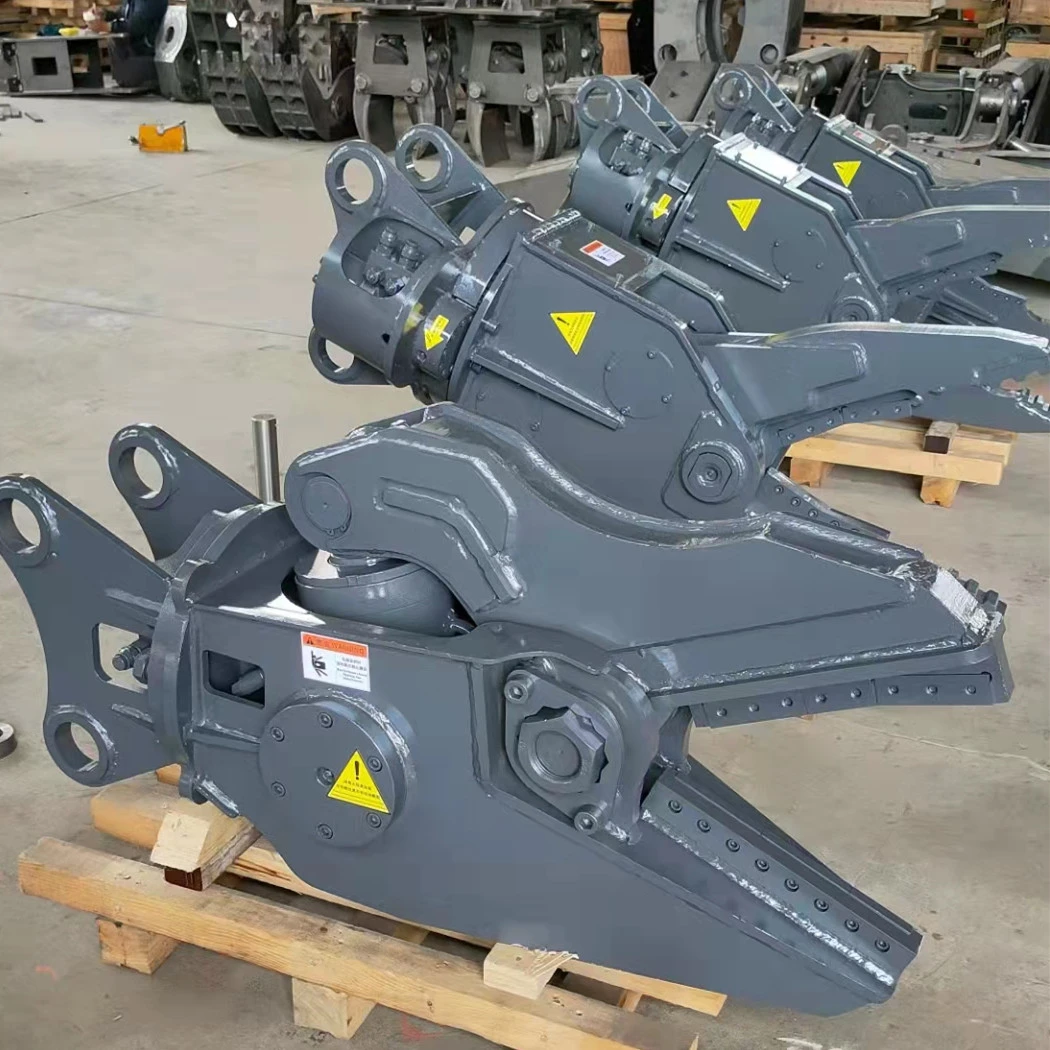

This serial of hydraulic shear is designed and optimized for 1.5-9ton mini excavators and skid steer loaders, it can easily cut heavy wire, rebar, pipe, strapping, I-beam, and more. Due to light and compact structure, it widely applied for indoor jobsite. With an improved weight to cutting ration, the mini shear is made with durable tool steel and its cutting blades are reversible with multiple cutting edges making them easy to shim, re-sharpen and replace. This allows the hydraulic shear 1-9 ton to deliver increased power, performance, reliability and cost savings.
Light and compact structure
Large cylinder and piston for more cutting force
360 degree rotation
Cutting edge can be replaced
Made of high strength materials
Increased operating stability and Improved durability

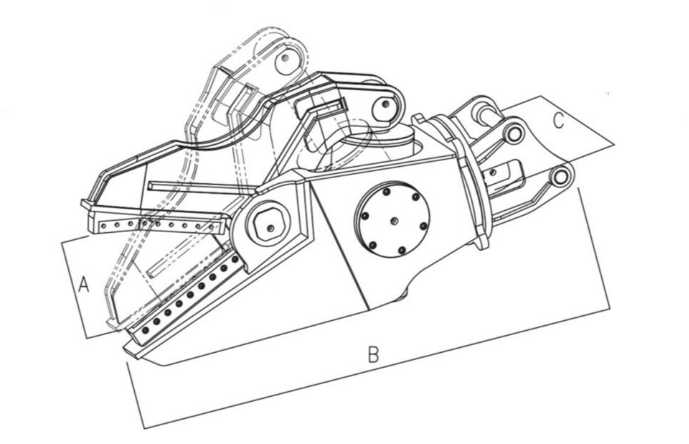

| Model | Excavator weight | A | B | C | Crushing force | Pressure | Weight | Rotating type |
| ton | mm | mm | mm | ton | kg/cm² | ton | free rotation | |
| SC30 | 1.5-2.5 | 220 | 1050 | 435 | 20 | 210 | 205 | |
| SC40 | 3-7 | 400 | 1360 | 534 | 32 | 340 | 350 | |
| SC50M | 4-9 | 400 | 1400 | 534 | 32 | 235 | 430 | hydraulic rotation |
