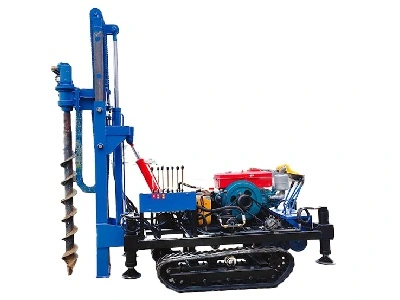

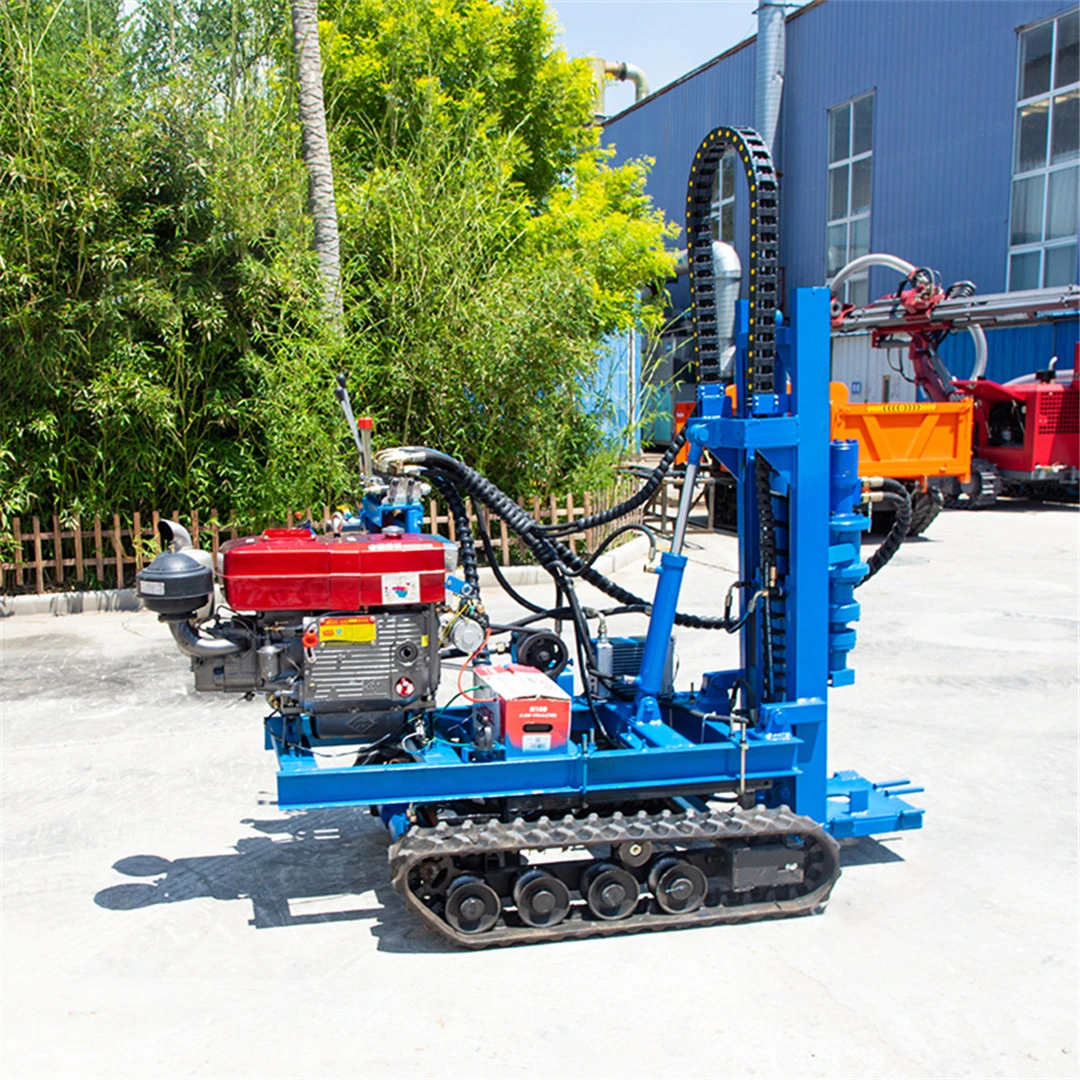

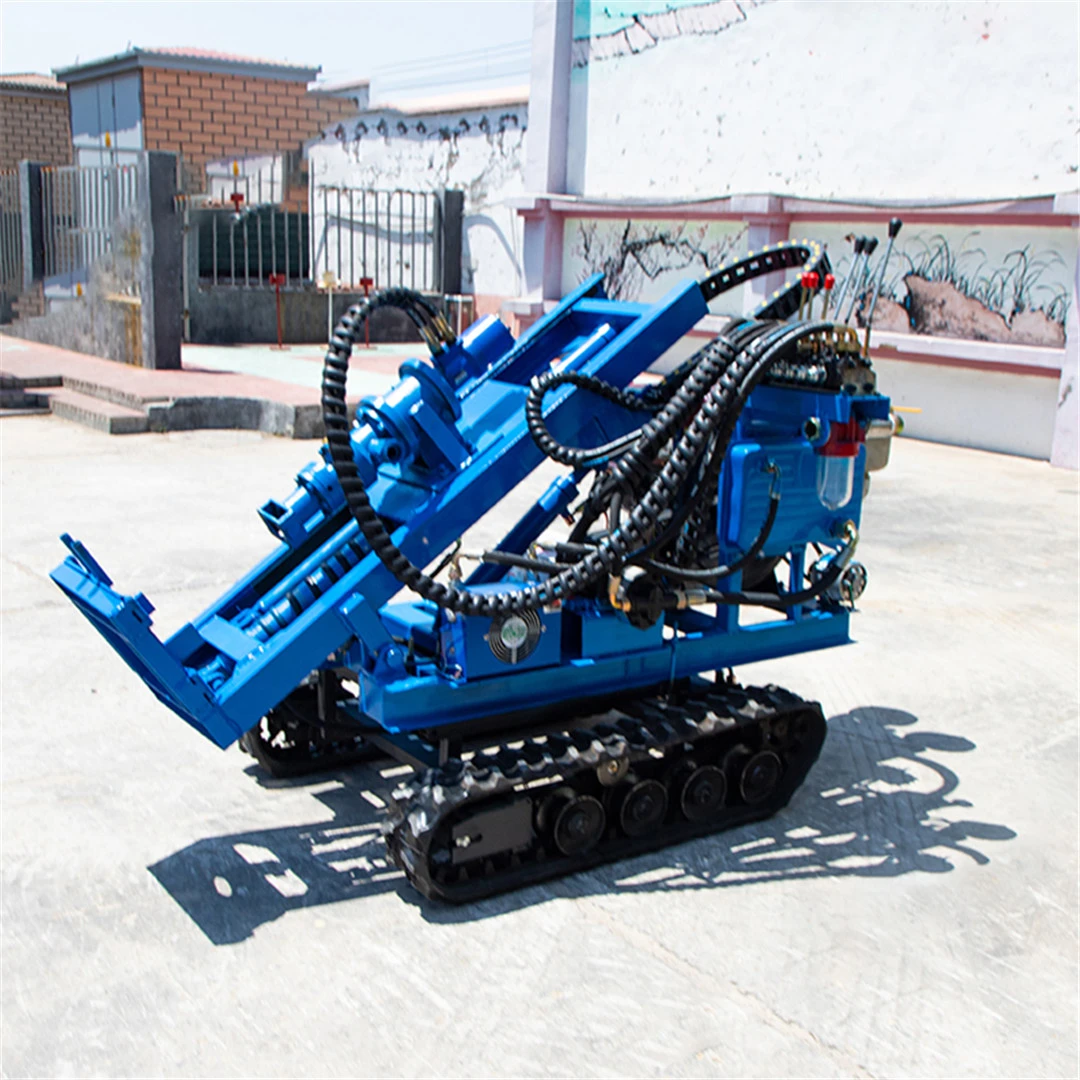

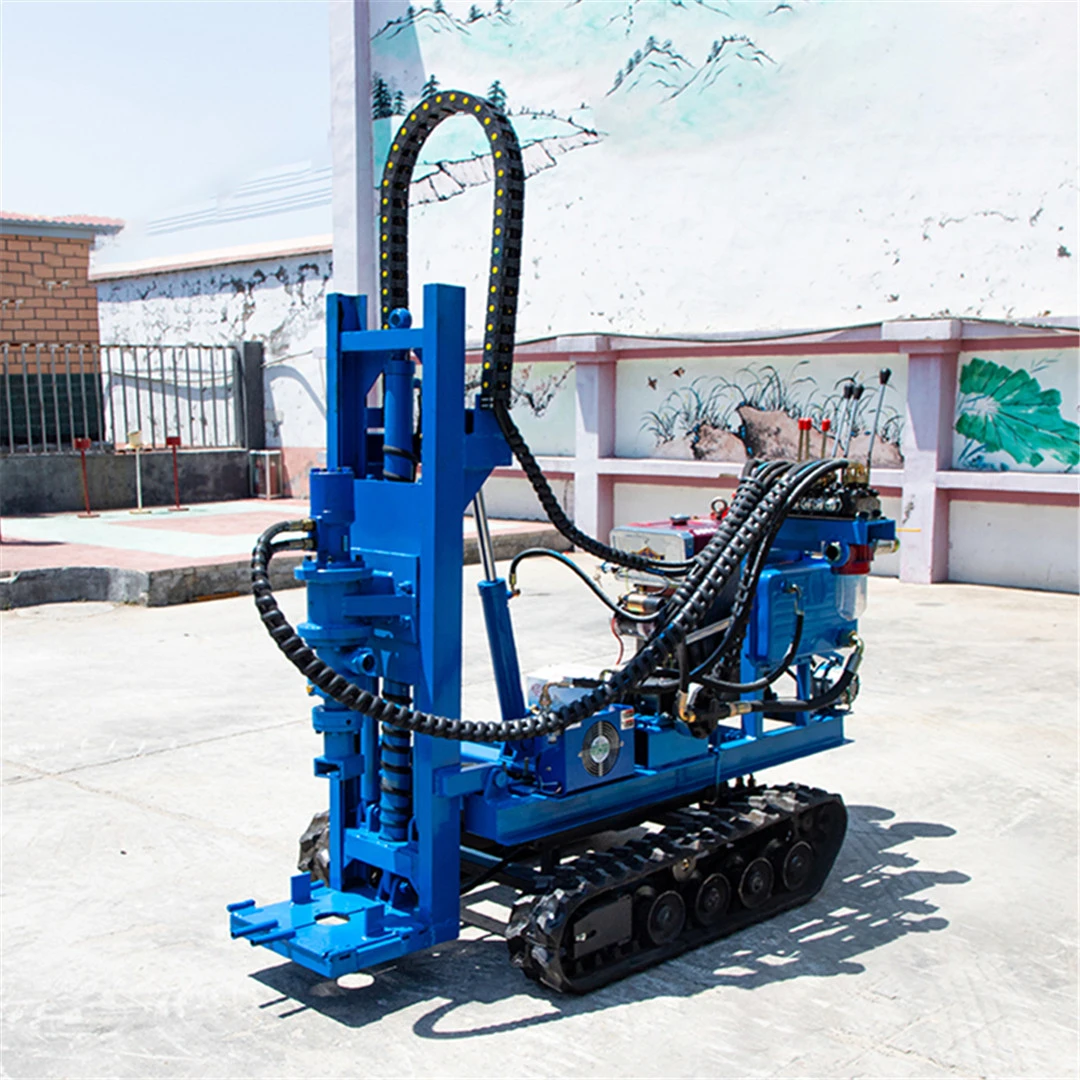

Multi-function Pile Driver

Name: Multi-function Pile Driver
Brand: YANTAI SC EQUIPMENT CO.,LTD.

This is multi-function pile driver, except solar screw pile driving, it can also be mounted with auger for common earth hole drilling, and with impactor for rock drilling. The max drilling depth can be up to 10m. Compact design which only 250kgs, and easy for transport to working spot.

Inquiry

Features Specification Images Video

Features of Multi-function Pile Driver

Equipped with 22-32 HP diesel engine,Chinese famous brand CHANGCHAI.
Equipped with 4500 NM torque auger driver.
Except solar pile driving, it can also be mounted with auger for common earth hole drilling, and with impactor for rock drilling.
Compact design for transport easily, only 250kgs.

Specification of Multi-function Pile Driver

Model	SC02mini
Drill type	Screw, Impact
Motor power	HP	32
Torque	Nm	4500
Dimentions	Mm	3000x1100x2200
Weight	Kg	250
Depth of drill by impactor	M	10
Max dia of drill by impactor	Mm	200
Dia of screw auger	Mm	50-300
Length of screw auger	M	2-3
Walking power	Kw	32
