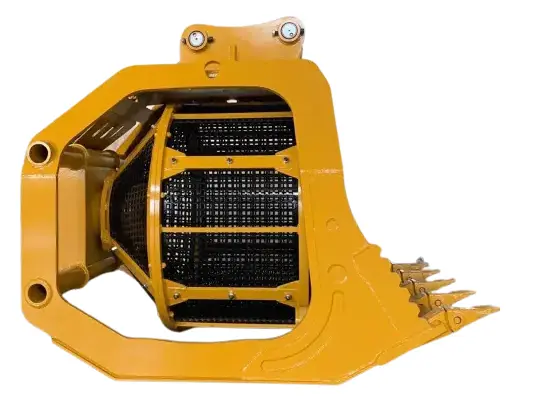

Rotary screen bucket is perfect attachment for sorting and separating topsoil, quarried stone, beaches, demolition waste and green recycling duties. Designed with interchangeable screening net, which is available in various sizes, and easy to replace bolt-on wear edges to reduce down time and maximise productivity. By presorting on-site, minimizing the need for transportation back to yard or moving it to landfills, It reduces costs and processing times. Six models are available to fit excavators from 3-40ton. SC Equipment manufacturer excavator bucket attachments with custom solutions and competitive prices.

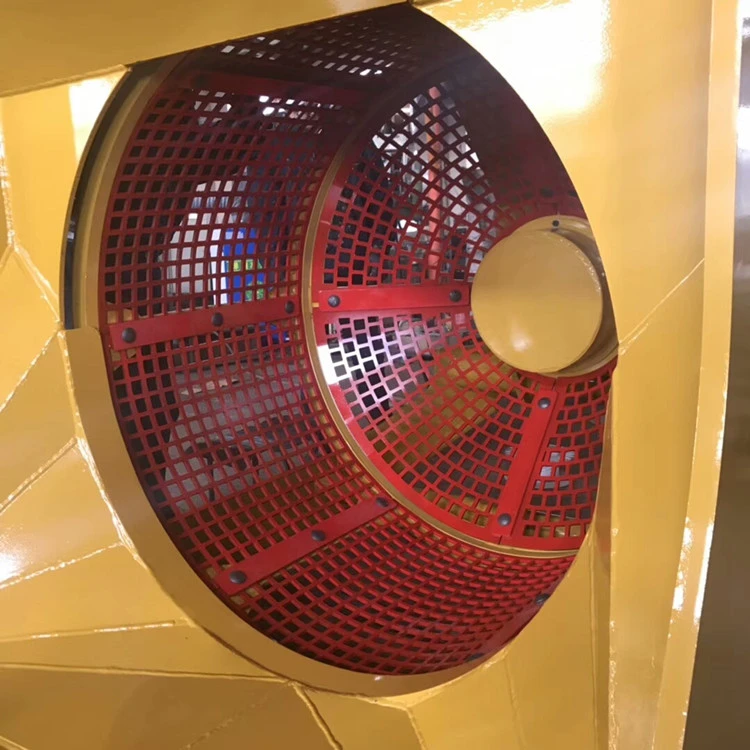

Removeable screen net sizes available from 20mm – 150mm.
Interchangeable wear plate.
High strength wear resistant steel for main frame, hardox is optional.
High quality waterproof motor.
Cross line relief valve for motor protection and drum overrun.
Simple maintenance, heavy duty drive.
| MODEL | SC03 | SC06 | SC10 | SC20 | SC30 | SC35 |
| Suitable excavators/ton | ≥3<6 | ≥6<9 | ≥9<20 | ≥20<30 | ≥30<35 | ≥35 |

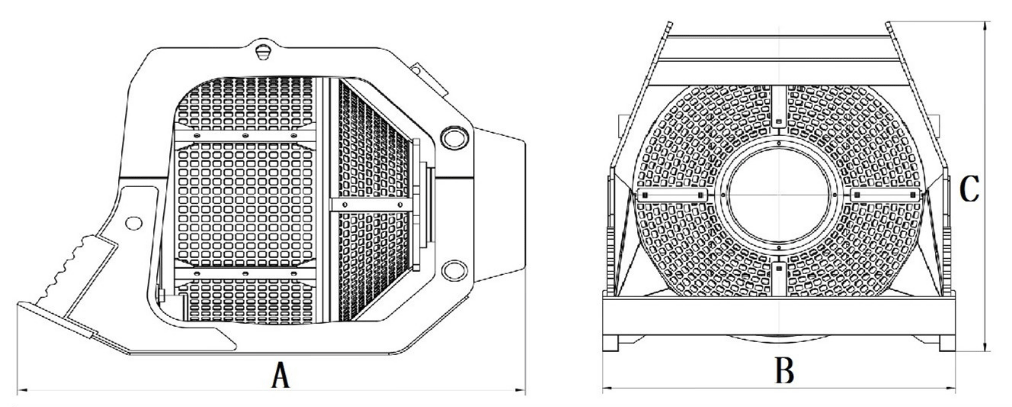

| Size(AXBXC) | 930*690*679 | 1127*880*853 | 1575*1200*1200 | 1940*1400*1415 | 2295*1870*1875 | 2930*2320*2380 |
| Weight/kg | 230 | 340 | 830 | 1270 | 2250 | 3945 |
| Mesh Diameter x Depth | 610*450 | 770*570 | 1000*780 | 1140*1015 | 1540*1180 | 1940*1590 |
| Speed R/M | 0-35 | 0-35 | 0-35 | 0-35 | 0-35 | 0-35 |
| Capacity m³ | 0.13 | 0.26 | 0.62 | 1.2 | 1.6 | 4.7 |
| Max Flow L | 40 | 40 | 65 | 65 | 65 | 160 |
| Max Pressure Mpa | 30 | 30 | 30 | 30 | 30 | 30 |
