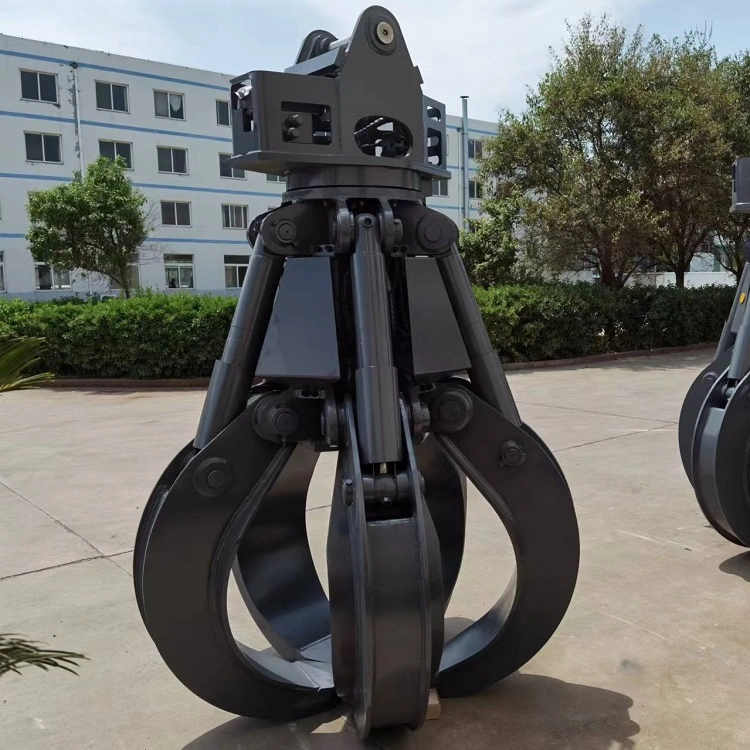

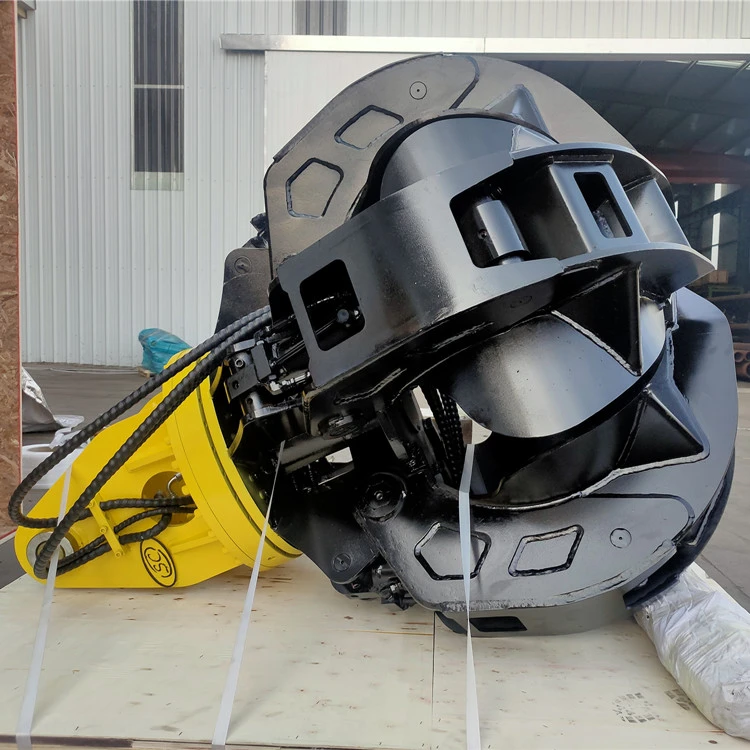

Orange Peel Scrap Grab

Name: Scrap Grab
Brand: YANTAI SC EQUIPMENT CO.,LTD.

Scrap grab also called orange peel grapple, which are designed for the handling of scrap metal and recycling materials for scrap yard. We offer a wide variety of scrap grabs with 4-5 tines for 6-40ton excavators. Equipped with integrated forged cylinders, oversized bushings & pins and large swing motor, the combination of these features makes our grabs become the high-performance material handlers. Tell us the materials you are handling, we can select the right model and size for you.

Inquiry

Features Specification Images Video

Features of scrap grab/orange peel grapple

Available in 4-Tine, 5-Tine for 5-40 ton excavators
Orange peel grab Integrated forged cylinder with guard avoid any damage
360 degree rotation with large swing motor increase your up-time, reduce your maintenance costs
Hoses is protected by guard from damage
High quality wear-resistance steel ensures the long life of orange peel grab

Specification of scrap grab/orange peel grapple

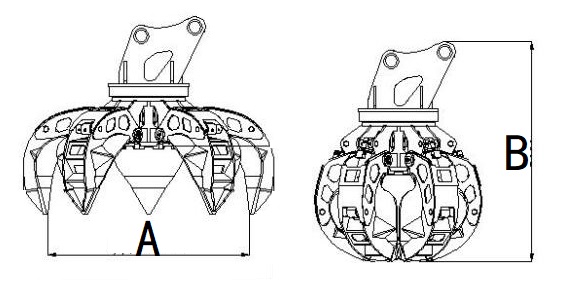

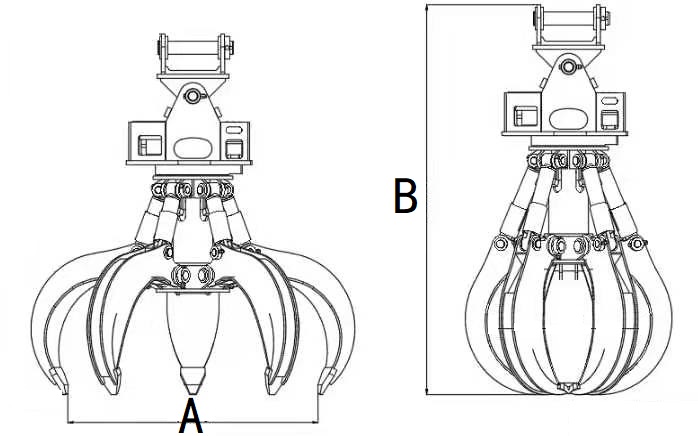

Specification of scrap grab orange peel grapple

	ROTARY LOW TYPE WITH 5TINES					ROTARY PIPE TYPE WITH 5TINES
MODEL	Unit	SC10	SC15	SC20	SC25	SC10	SC15	SC20	SC25
MODEL	Unit	SC10	SC15	SC20	SC25	SC10	SC15	SC20	SC25
Weight	KG	480	1000	1900	2700	640	1100	1580	1900
Max jaw opening A	MM	1360	1620	2050	2300	1475	1680	2150	2350
Height of closed grapple B	MM	1470	1650	1980	2220	2150	2410	2660	2880
NO.of Jaw	Piece	5	5	5	5	5	5	5	5
Pressure	Bar	260	260	260	260	260	260	260	260
Cylinder volume	Litre	400	600	800	1000	400	600	800	1000
Operating flow	Lpm	200-250	200-250	200-250	200-250	200-250	200-250	200-250	200-250
Capacity closed	m³	0.4	0.6	0.8	1.0	0.5	0.8	1.0	1.2
weight class	Ton	5-11	12-17	18-25	26-35	5-11	12-17	18-25	26-35

We have more custom selections, please contact SC Equipemnt excavator grapple for sale at competitive prices.

Custom orange peel grab/grapple for demolition and scrap

Unlock unparalleled efficiency in demolition and scrap handling with our custom-designed Orange Peel Grab/Grapple by SC Equipment. Engineered for superior performance, this specialized attachment seamlessly integrates into your equipment, providing a robust solution for metal waste applications.

The custom Orange Peel Grab/Grapple excels in precisely gripping and maneuvering various scrap materials, offering enhanced control and efficiency during demolition projects. Its distinctive design ensures optimal material handling, making it a reliable choice for scrapyards, demolition sites, and metal recycling operations.

Built with durability in mind, our custom Orange Peel Grab/Grapple is a testament to SC Equipment's commitment to delivering high-quality attachments. Elevate your demolition and scrap handling capabilities with this specialized tool, designed to withstand the rigors of challenging environments and provide lasting performance. Choose SC Equipment for innovative solutions that redefine efficiency in metal waste management.

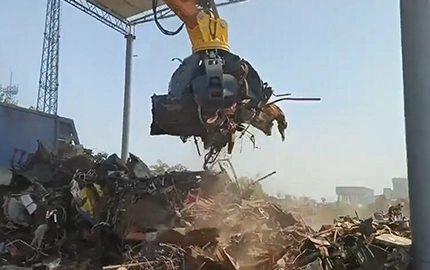

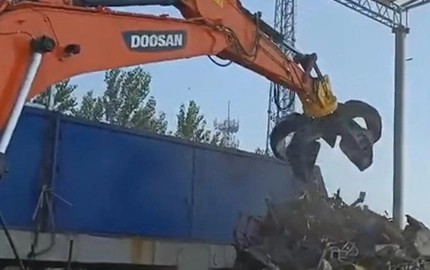

Orange scrap yard grabber handling metal waste

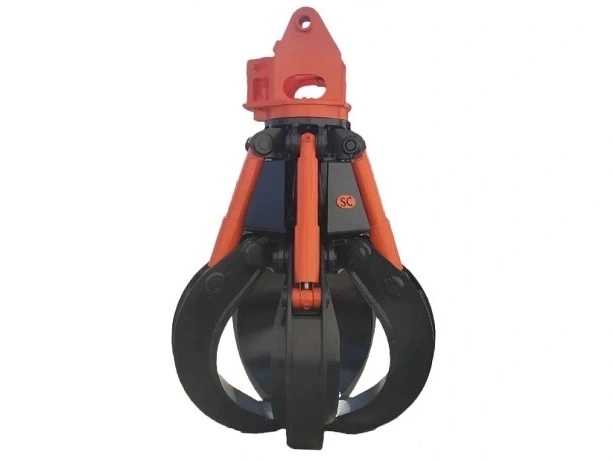

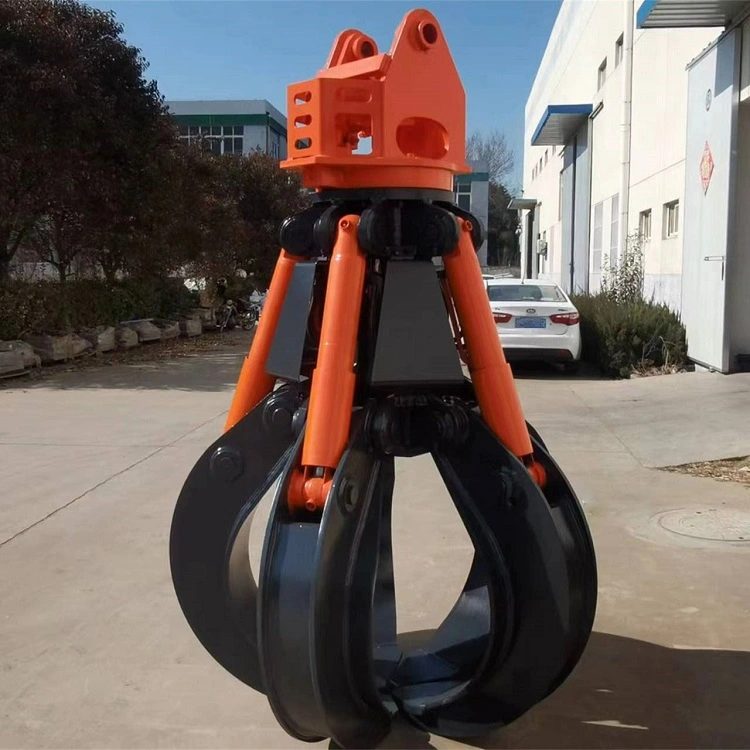

SC Equipment revolutionizes the metal waste industry with our advanced scrap yard grabber solutions, seamlessly blending power and precision. Our scrap yard grabbers, including the scrap handling grab, scrap metal grab, scrap metal grapple, and excavator scrap grapple, are designed to excel in demanding applications such as demolition and scrap metal processing.

The scrap handling grapples ensure efficient material handling, offering operators control and versatility. Whether it's a scrap metal grapple, excavator scrap grapple, or a scrap yard grapple, our equipment is engineered to withstand the challenges of metal waste environments. SC Equipment's scrap grapples, available for sale, embody durability and reliability.

With features like the orange peel grab and rotating grapple, our solutions provide flexibility in handling different materials and adapting to various scenarios. The scrap yard grabber range from SC Equipment guarantees increased efficiency, reduced downtime, and enhanced safety in your metal waste, demolition, and scrap handling operations.

Invest in the future of scrap handling with SC Equipment's innovative scrap yard grabbers. Elevate your metal waste processing capabilities with our scrap grapples, ensuring optimal performance and longevity in the face of challenging applications.
