Screw Pile Driver

Name: Screw Pile Driver
Brand: YANTAI SC EQUIPMENT CO.,LTD.

Developed in conjunction with auger drill, Screw pile driver become the best tool for foundation screw piling, helical piling as well and setting ground anchors. Designed to suit excavators from 1-150 tons, SC screw pile driver range from 1500NM to 580000NM auger torque. Equipped with Parker motor, our screw pile driver delivery consistent and efficient pile installation throughout your working day and maximum returns.

Inquiry

Features Specification Video & Images

Features of Screw pile driver

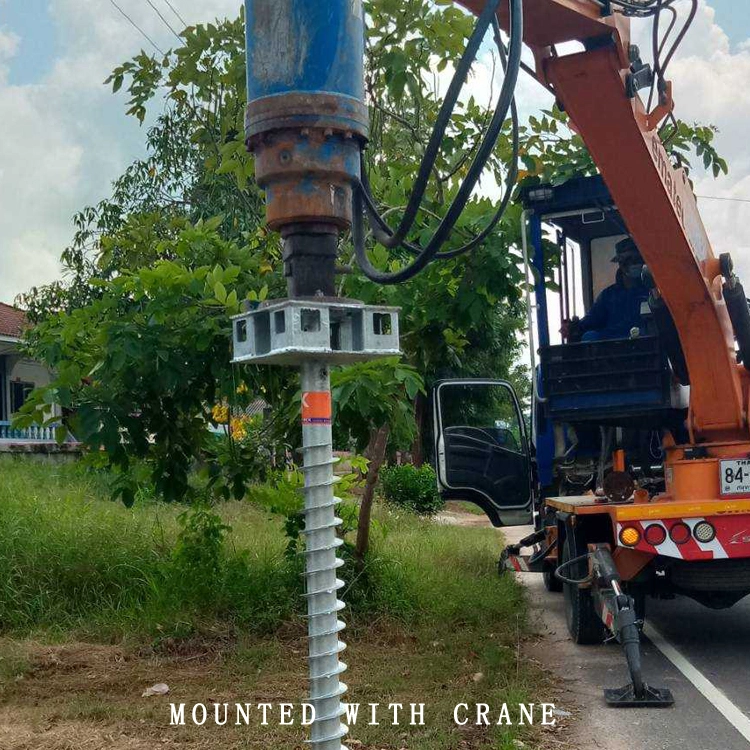

Pile driver with 1500NM-580000NM torque for 1-150ton excavators. Crane can be mounted.
Biggest pile drivers with 380000NM and 580000NM break through the limit in the world of screw piling applications.

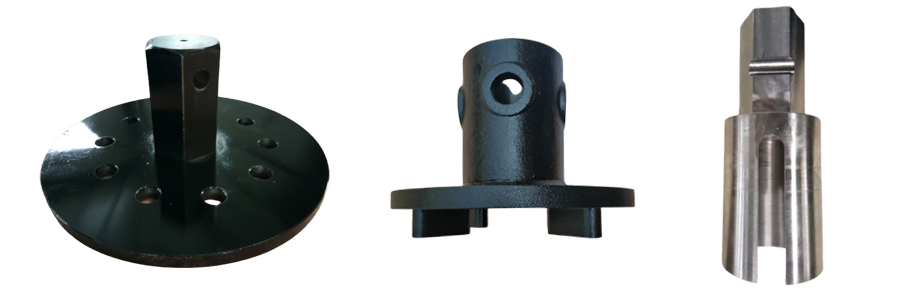

Customize various shapes of attachment couplings like connection bushing and adaptors.
Parker motor assure its sturdiness and reliability
Ideal for all models of piles like diameter 60mm,76mm,89mm and more thicker.
Offer excellent cost-efficiency. lower maintenance costs, and increased productivity

Specification of Screw pile driver

S.N	MODEL	Excavator weight	Max speed R/m	Max torque Nm	STD Oil flow L/m	Immidiate pressure Bar	Outshaft mm	Hose
1	SC1500	0.8-1.5T	80	1500	55	170	51Hex, 65Rnd	1/2''G
2	SC2500		62	2500	75	260		1/2''G

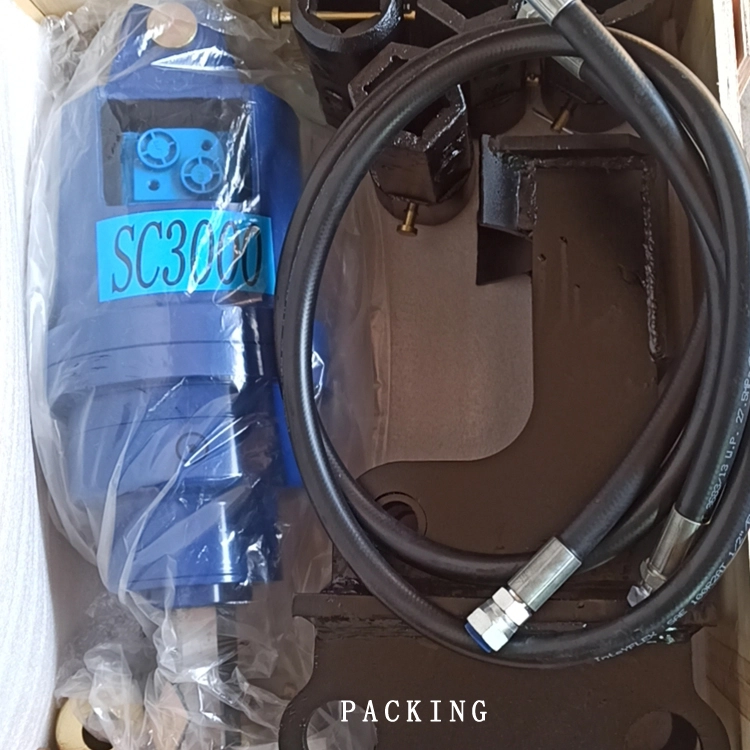

3	SC3000	2T-3T	62	3000	75	260		1/2''G
4	SC3500	2.5T-3.5T	56	3500	75	260		1/2''G
5	SC4000	3T-4T	56	4000	75	260		1/2''G
6	SC4500	3.5T-4.5T	50	4500	95	260		1/2''G
7	SC5000	4T-5.5T	48	5000	95	260		1/2''G
8	SC5500	4T-6T	44	5500	95	310		1/2''G
9	SC6000	4.5T-7T	42	6000	95	310		1/2''G
10	SC7000	5T-8T	38	7000	150	310	75Square	1''G
11	SC8000	6T-8T	36	8000	150	310		1''G
12	SC10000	7T-10T	35	10000	170	310		1''G
13	SC12000	8T-12T	35	12000	170	310		1''G
14	SC15000	13T-17T	30	15000	180	310		1''G
15	SC20000	15T-20T	30	20000	180	310		1''G
16	SC25000	18T-22T	40	25000	250	310		1''G
17	SC30000	18T-25T	35	30000	250	310	110Square	1''G
18	SC45000	20T-28T	32	45000	424	320		1''G
19	SC50000	25T-35T	30	50000	424	320		1''G
20	SC70000	30T-40T	25	70000	424	320		1''G

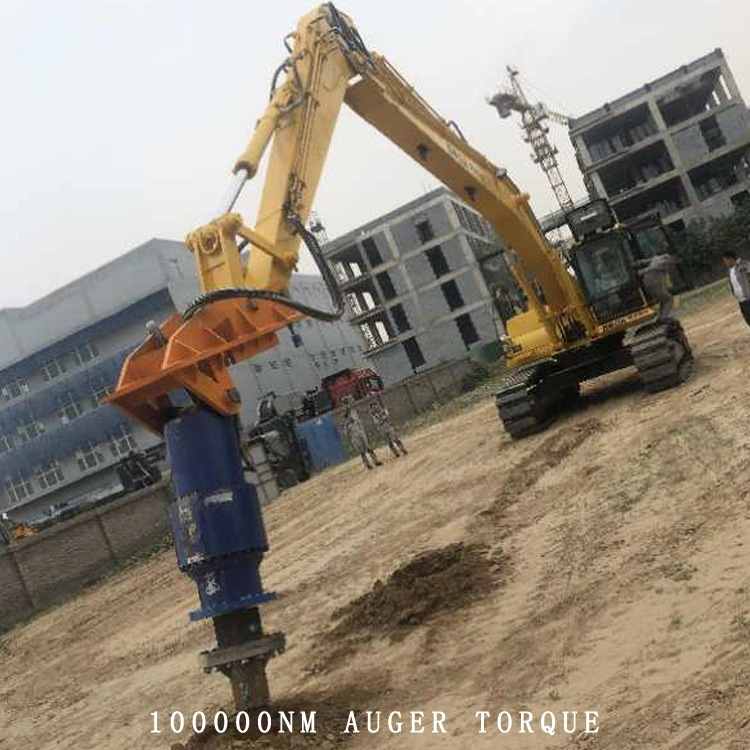

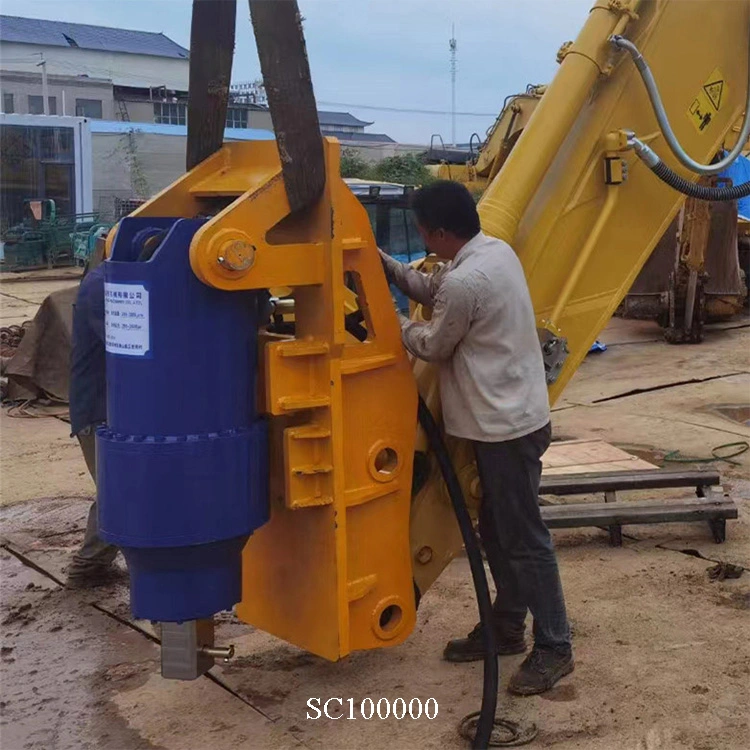

21	SC100000	36T-50T	23	100000	625	320		1''G
22	SC380000	60T-100T	9.5	380000	1000	320	200Square	1''G
23	SC580000	100T-150T	5.5	580000	1000	320	200Square	1''G
