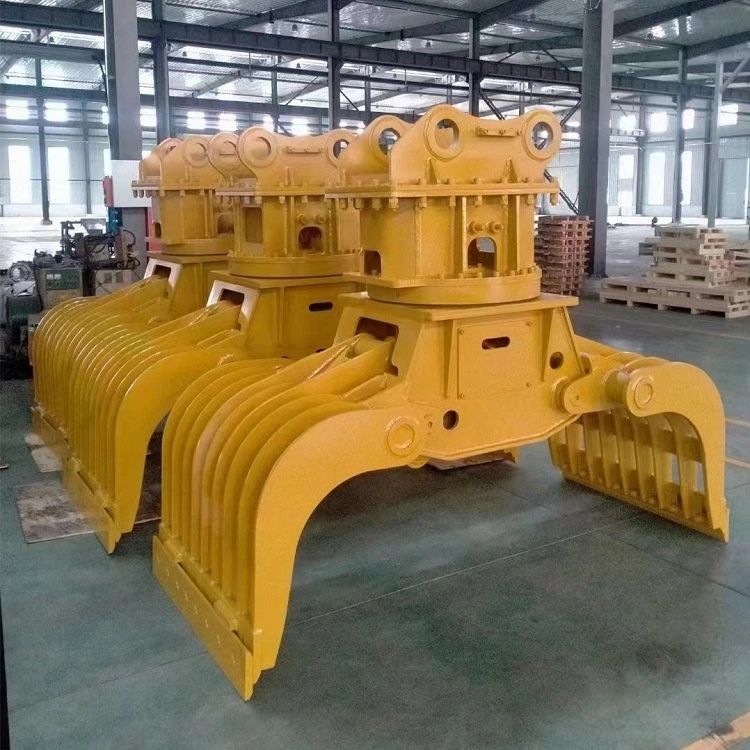

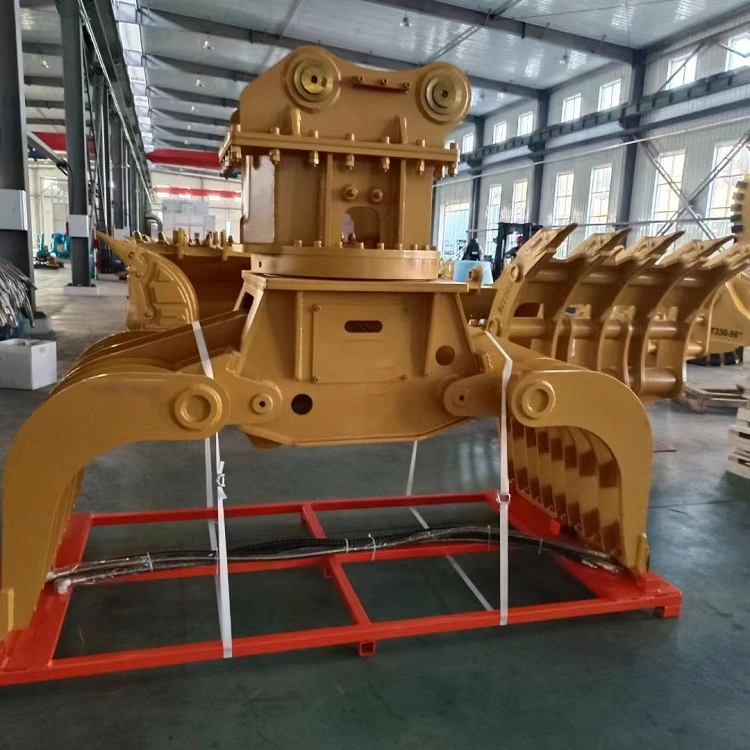

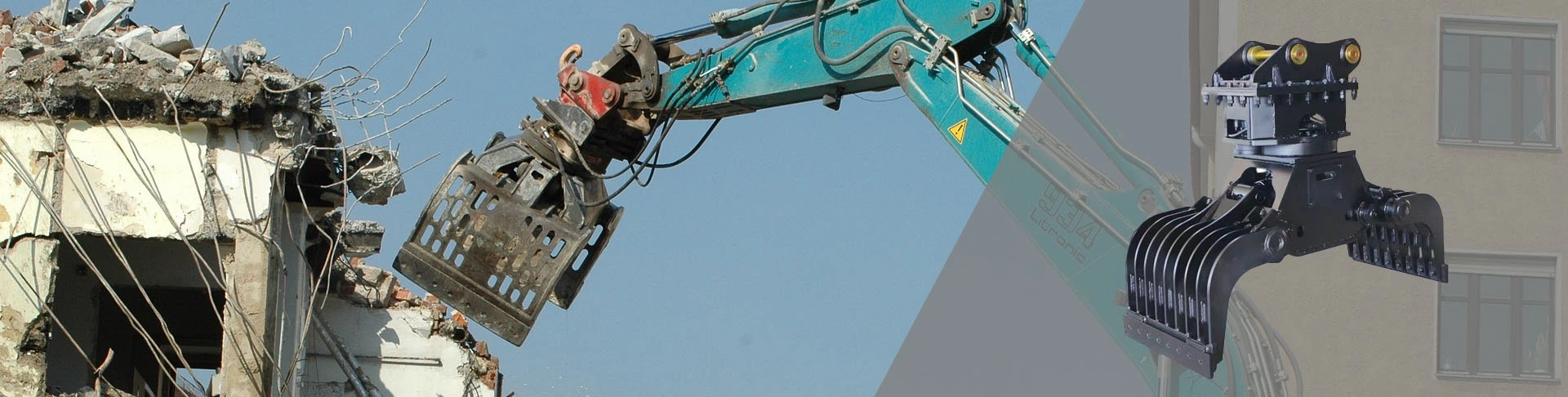

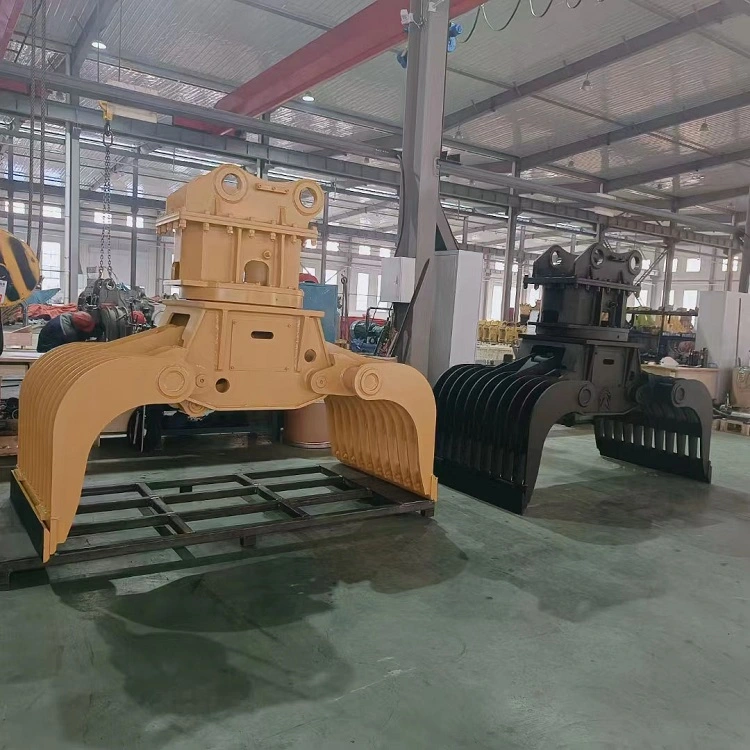

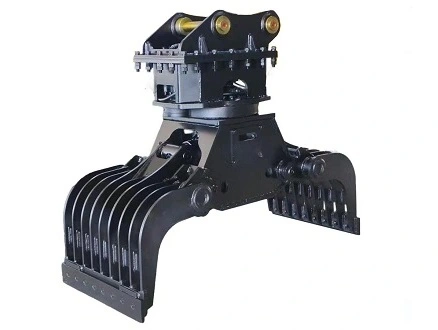

Selector grab is a heavy duty attachment appropriate for varying applications such as demolition, waste recycling and general sorting. We offer a range of selector grabs to suit for 4-40ton excavators. Manufactured with NM500 wear resistant material, SC selector can be resistant to dirt and debris. With a high clamping force, adjustable rotation speed and large jaw opening, our selector grab range do not only save time and cost, but also facilitate every task.
360° unlimited rotation
Maximum closing and grab force
Long hinge arms to the cylinder for a greater closing power
Constant closing forces during the entire operation.
Side-mounted hoses to prolong hose life.
Manufactured with NM500 wear resistant material
Hardened pins & replaceable wear bushes throughout
| Model | SC06 | SC10 | SC15 | SC20 | SC30 |
| Suitable excavator（t） | 4-6 | 7-10 | 11-17 | 16-23 | 25-40 |
| Jaw Width（mm） | 400 | 550 | 800 | 1000 | 1250 |
| Max Opening（mm） | 1000 | 1400 | 1800 | 2050 | 2400 |
| Working Pressure（bar） | 320 | 320 | 350 | 350 | 350 |
| Oil Flow（L/min） | 50 | 50 | 80 | 80 | 80 |
| Weight（kg） | 300 | 400 | 960 | 1450 | 2060 |
We have more custom selections, please contact SC Equipemnt excavator grapple for sale at competitive prices.
