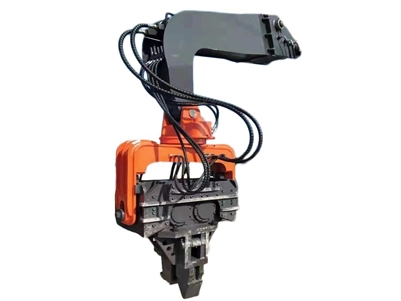

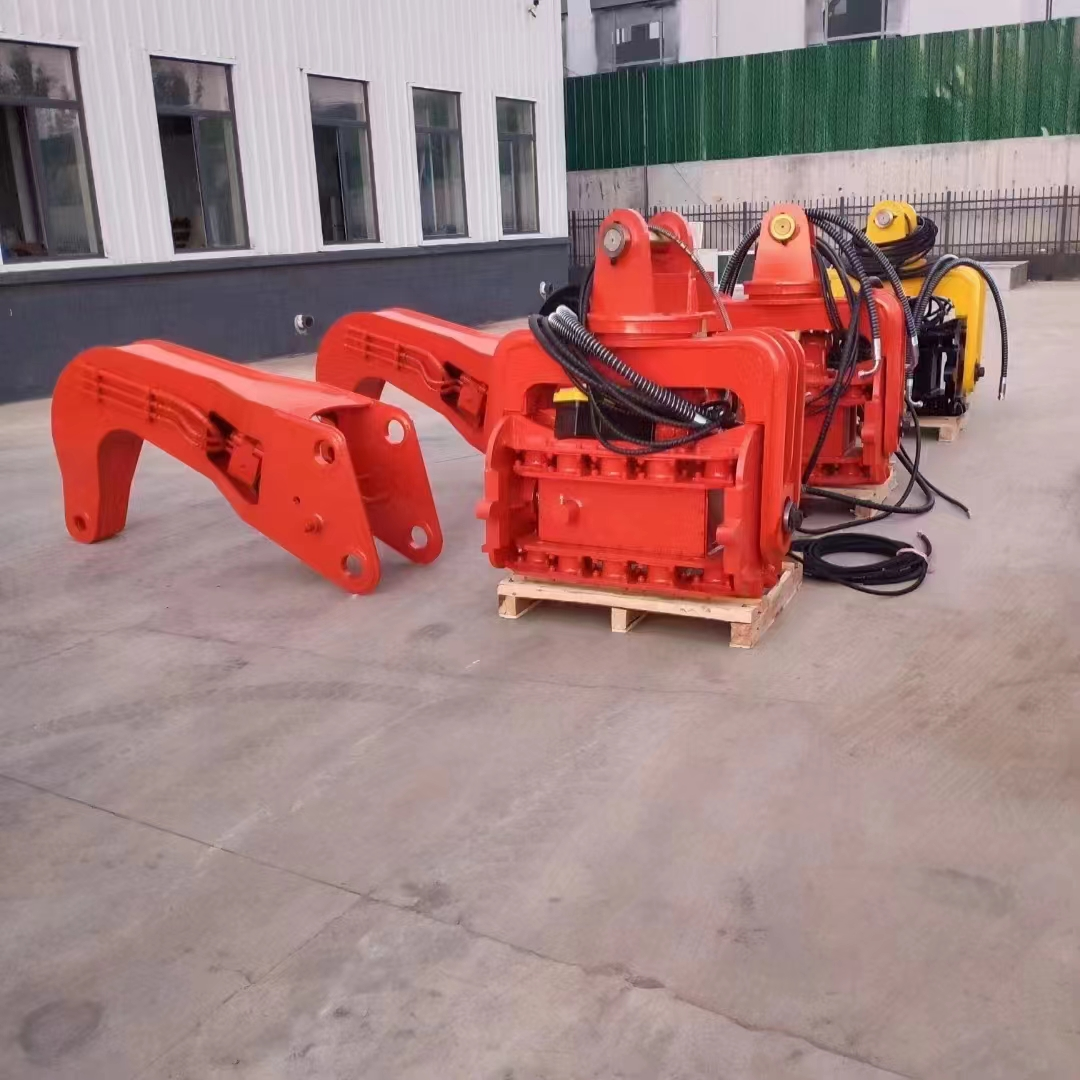

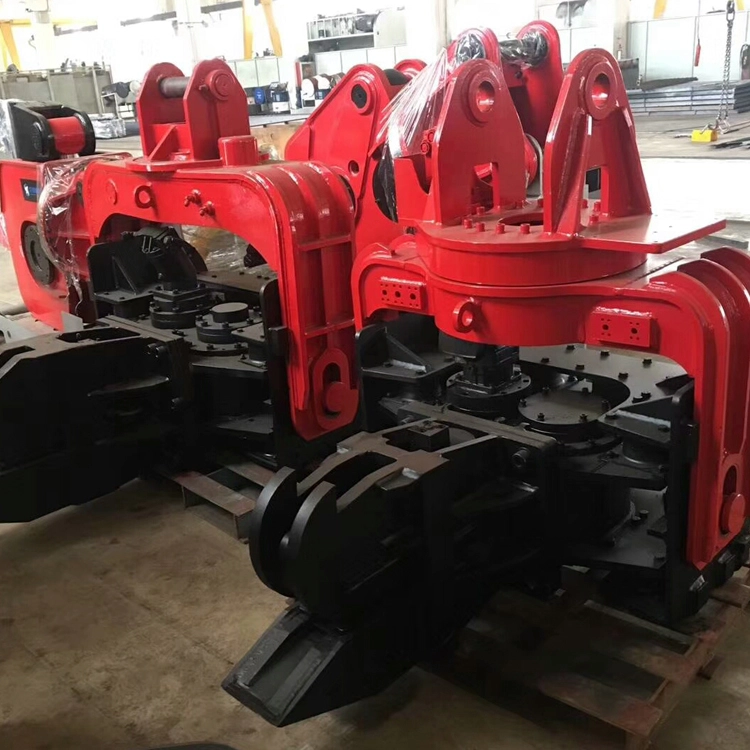

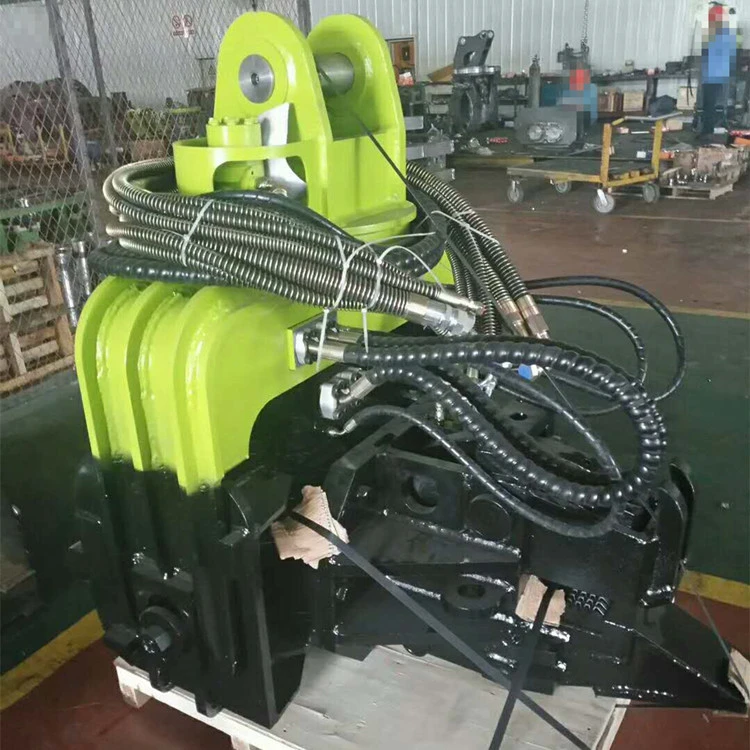

Vibro Pile Hammer

Name: Vibro Pile Hammer
Brand: YANTAI SC EQUIPMENT CO.,LTD.

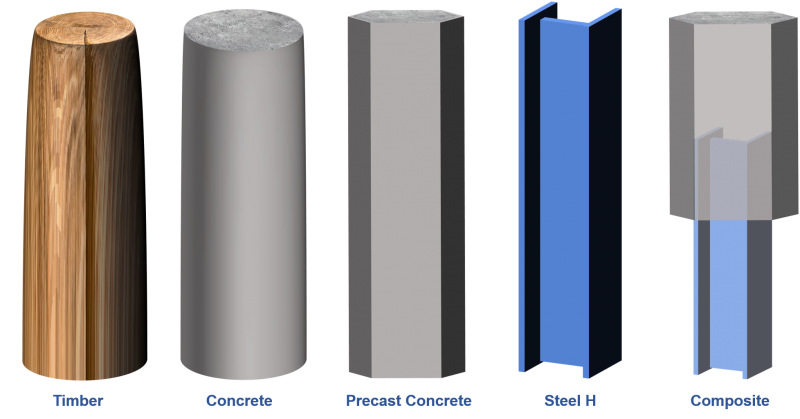

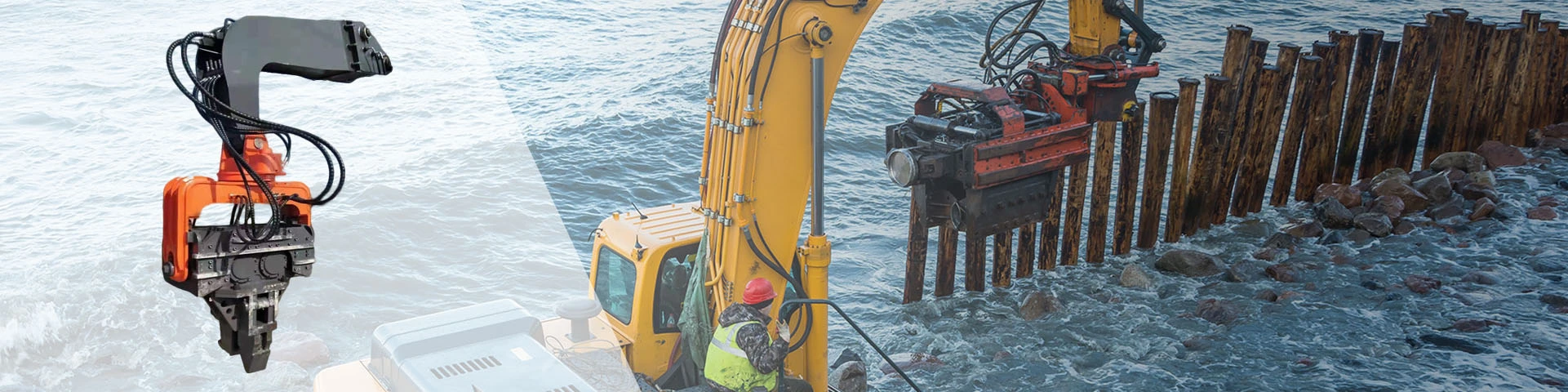

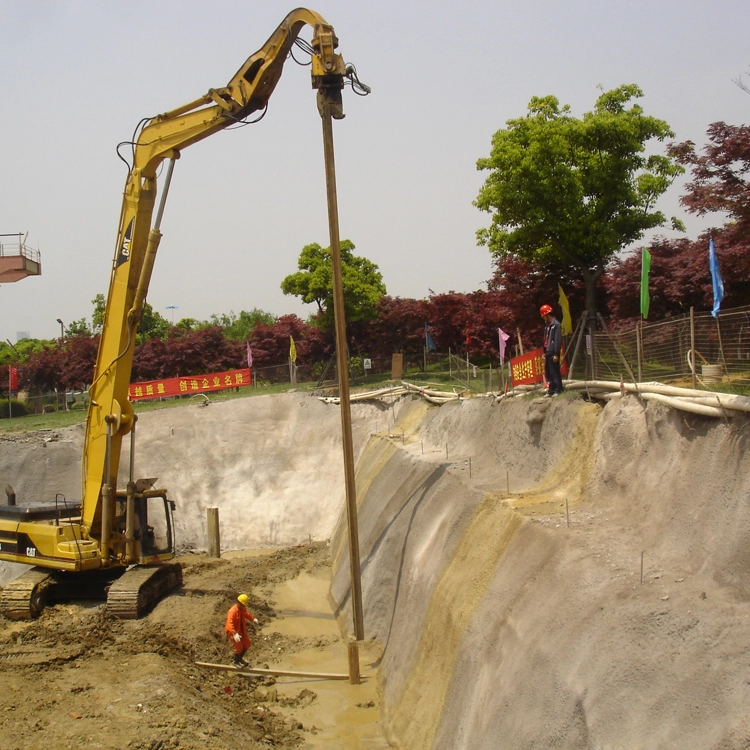

Vibro pile hammer is the best excavator attachment for pile installation on construction, earth work industries and civil engineering. It is hydraulic impact-type piling hammers used for driving a wide range of piles including sheet piles, H-beams, tubular steel piles, timber piles or pre-cast concrete piles. Designed for 20-50t excavators, SC vibro pile hammer can install max 15m length of piles.

Equipped with famous brand of motor and bearings, our vibro pile hammer provide you with the fastest way to drive your piles with a minimal effort.

Inquiry

Features Specification Images Video

Features of Vibro Pile Hammer

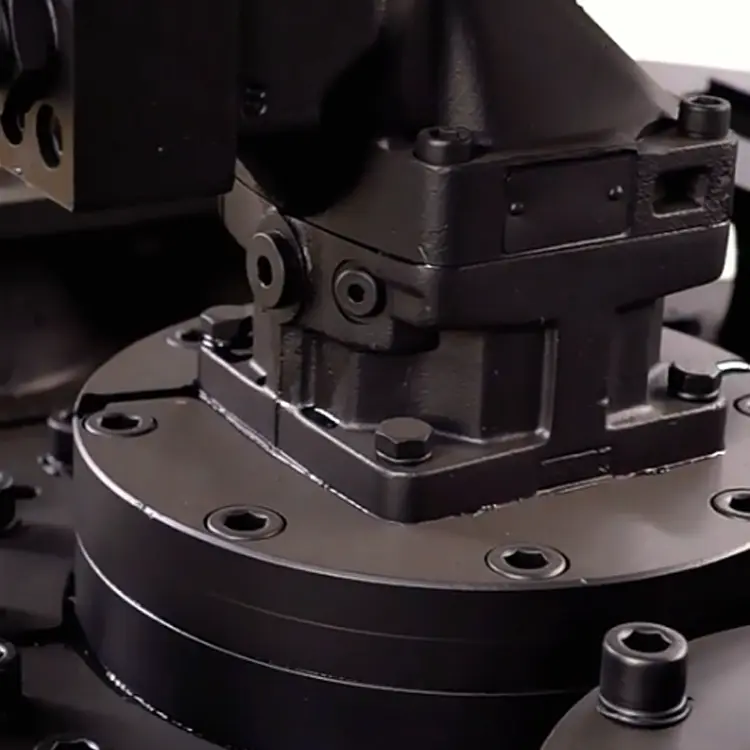

Famous PARKER brand motor ensure stable superior quality and performance
Adopt high-performance imported damping rubber blocks which is durable and long life.
Low noise with high efficiency
Max pile length can be 15m, non damage to piles
less tension when pulling piles

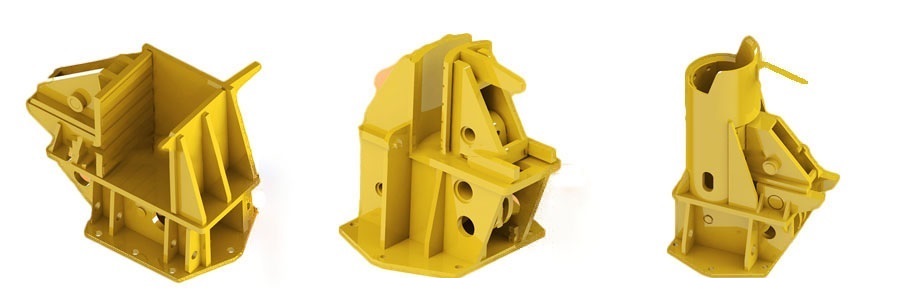

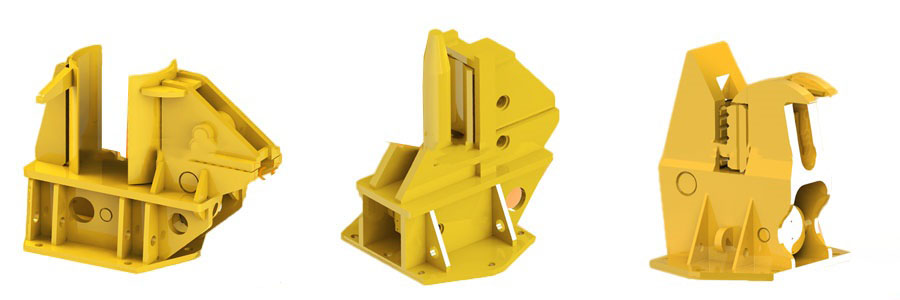

Custom pile clamps by request
Warranty 18 months

Specification of Vibro Pile Hammer

Model		SC250	SC330	SC350	SC450
Suitable excavator (T)		20-30	30-40	36-50	40-50
Eccentric moment (Nm)		48	52	65	85
Frequency (R/min)		2800	2800	2800	2800
Centrifugal force (Kn)		400	480	580	750
Working pressure(Bar)		300	320	300	300
Oil flow (Lpm)		155	210	255	255
Max turning (Degree)		180	180	180	180

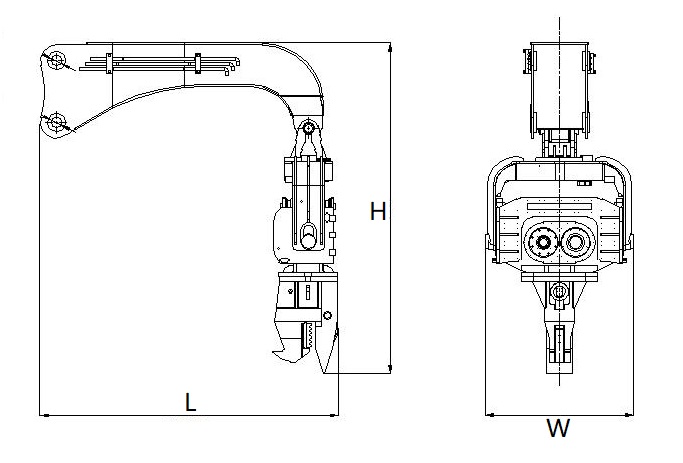

L x W x H (Mm)		2763x1370x3060	2820x1465x3211	2930x1585x3253	2950x1585x3280
Weight (Kg)	Main boday	1950	2650	2900	3000
	Extension boom	450	650	740	650
	Total weight	2400	3300	3640	3650
