What's vibro pile hammer？

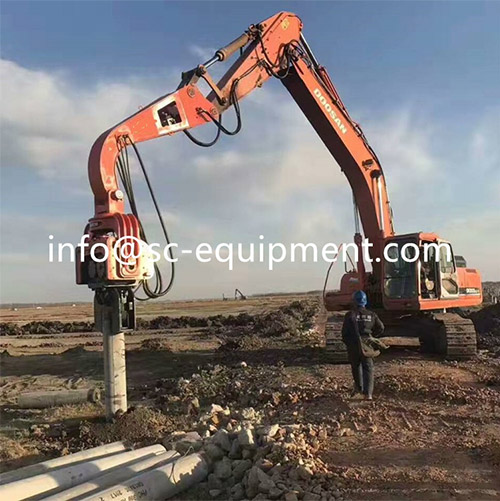

A vibratory pile driver, mounted on an excavator’s arm, employs vibration to drive piles into the ground. This equipment merges the excavator’s versatility with the efficiency of vibratory piling technology, making it indispensable in construction, bridge, and port projects. Below are some details about the vibratory pile driver:

Key Components

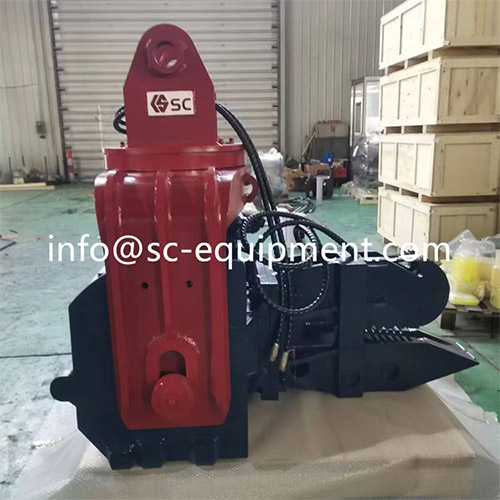

1. Vibratory Hammer: The core component, generating vibratory force through high-speed rotating eccentric weights to drive piles into the ground.

2. Clamps: Secure the piles, ensuring stability during the driving process.

3. Hydraulic System: Provides the power source, controlling the vibratory hammer and clamps.

4. Control System: Typically located in the excavator’s cab, allowing the operator to precisely manage the piling process.

Working Principle

The vibratory pile driver uses the vibratory hammer to produce high-frequency vibrations, liquefying or loosening the soil around the pile, thereby reducing soil resistance and facilitating easier pile insertion. The vibration frequency and force can be adjusted according to soil conditions and pile types.

Advantages

1. Efficiency: Rapid piling speed, suitable for large-scale projects.

2. Flexibility: Mounted on an excavator, it is easily maneuverable and adaptable to various terrains.

3. Low Noise: Produces less noise compared to traditional piling methods, ideal for noise-sensitive urban areas.

4. Versatility: Capable of driving various types of piles, such as sheet piles, pipe piles, and H-beams.

Applications

1. Building Foundations: Driving foundation piles to support structures.

2. Bridge Construction: Piling for bridge piers.

3. Ports and Harbors: Driving piles for breakwaters and dock foundations.

4. Temporary Support: Such as excavation support and slope stabilization.

Considerations

1. Soil Conditions: Best suited for loose soils, sands, and clays, but less effective in rock or hard soils.

2. Equipment Maintenance: Regular inspection and maintenance of the hydraulic system, vibratory hammer, and clamps to ensure optimal performance.

3. Operational Safety: Operators should receive professional training and be familiar with operational protocols to ensure safety.

In summary, the vibratory pile driver is a highly efficient, flexible, and low-noise piling solution, widely used in various engineering projects. Selecting the appropriate equipment and employing correct operational methods can significantly enhance project efficiency and quality.
