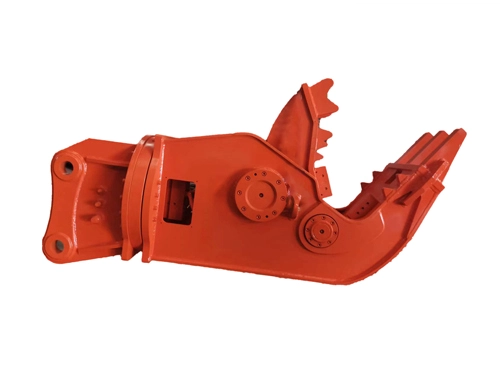

Demolition Pulverizer

Name: Demolition Pulverizer
Brand: YANTAI SC EQUIPMENT CO.,LTD.

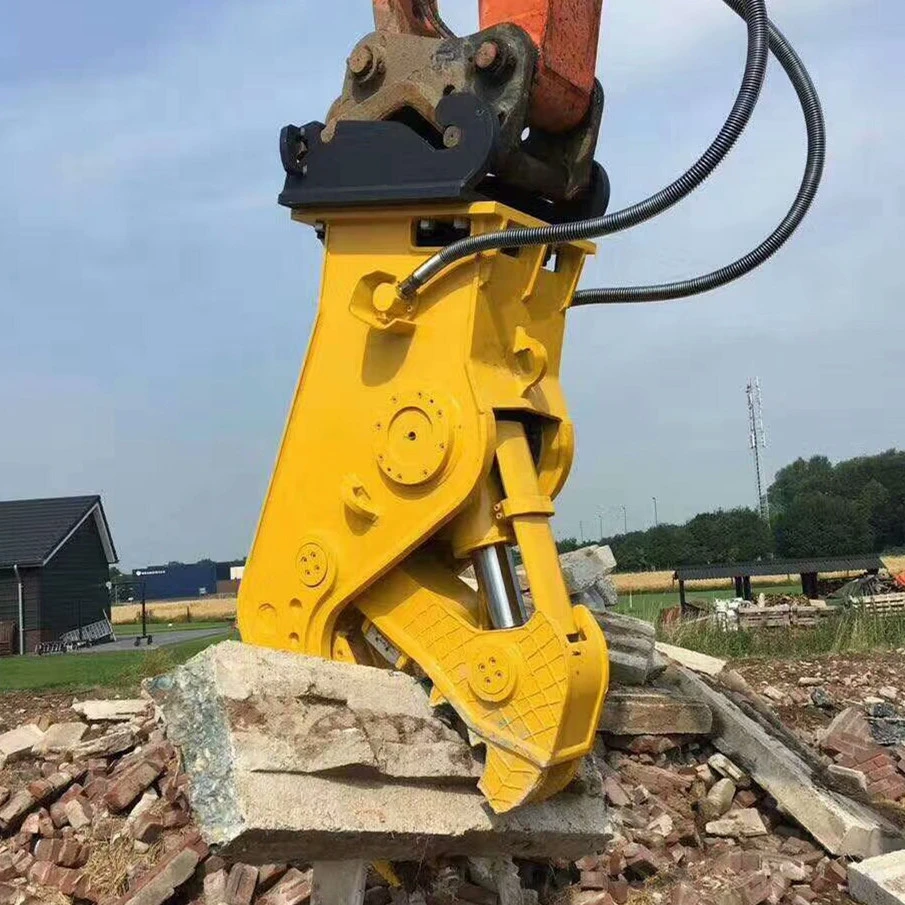

Demolition pulverizer also called concrete crusher, it is a necessary tool on demolition works. If you crush concrete constantly, a concrete crusher/hydraulic pulverizer is worth the investment, Our concrete crusher/hydraulic pulverizer suitable for heavy-duty demolition material with lots of rebar, it will crushing the concrete into small pieces and set aside the rebar and any uncrushable objects. Also the cutting tool on our crusher helps you to cut long strands of rebar. There is rotary type and fix type for your choose.

Inquiry

Features Specification Images Video

Features of Demolition Pulverizer

Non rotation & 360° rotation available;Magnet can be added.

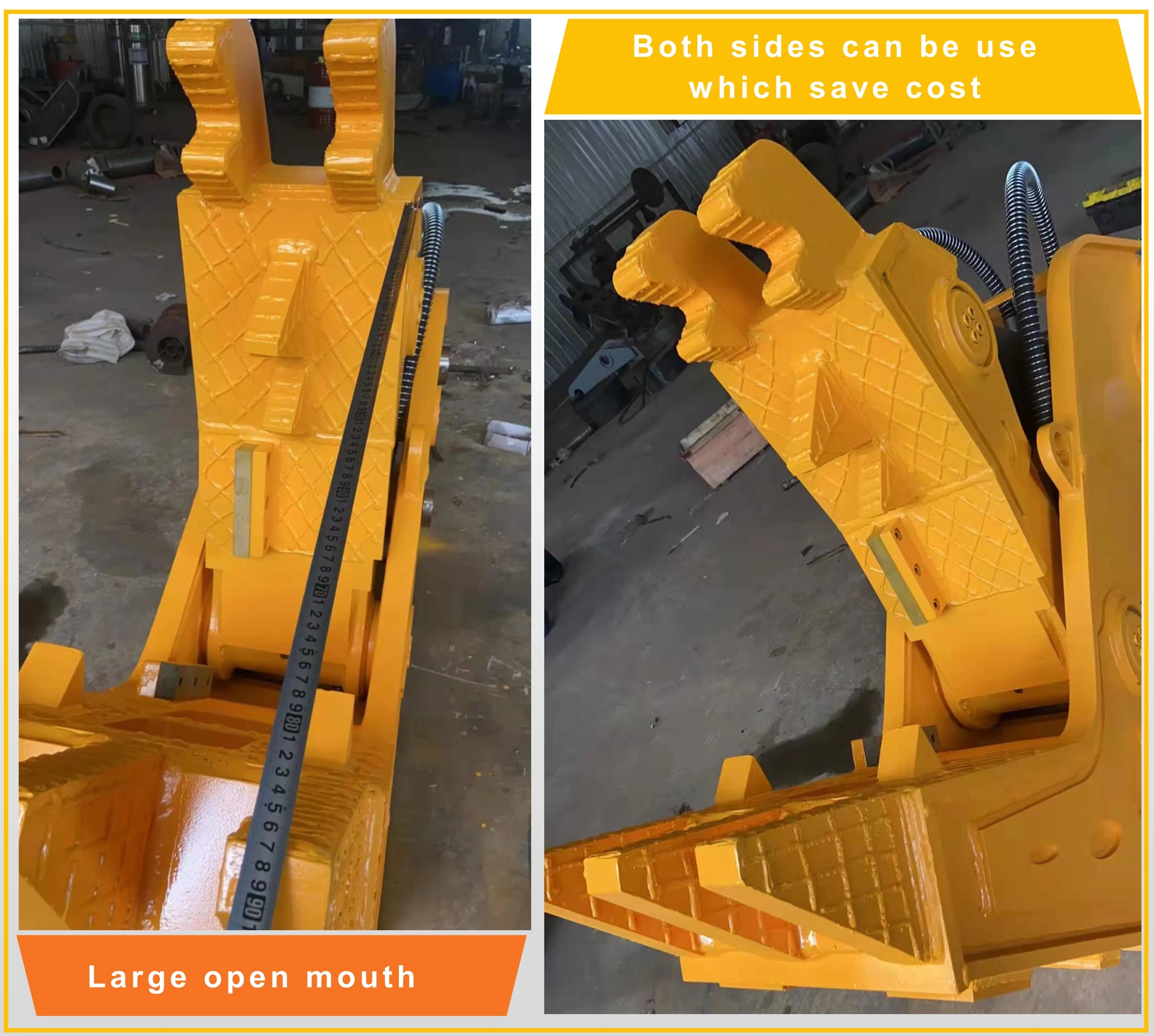

Large Jaw capacity to process thick concrete

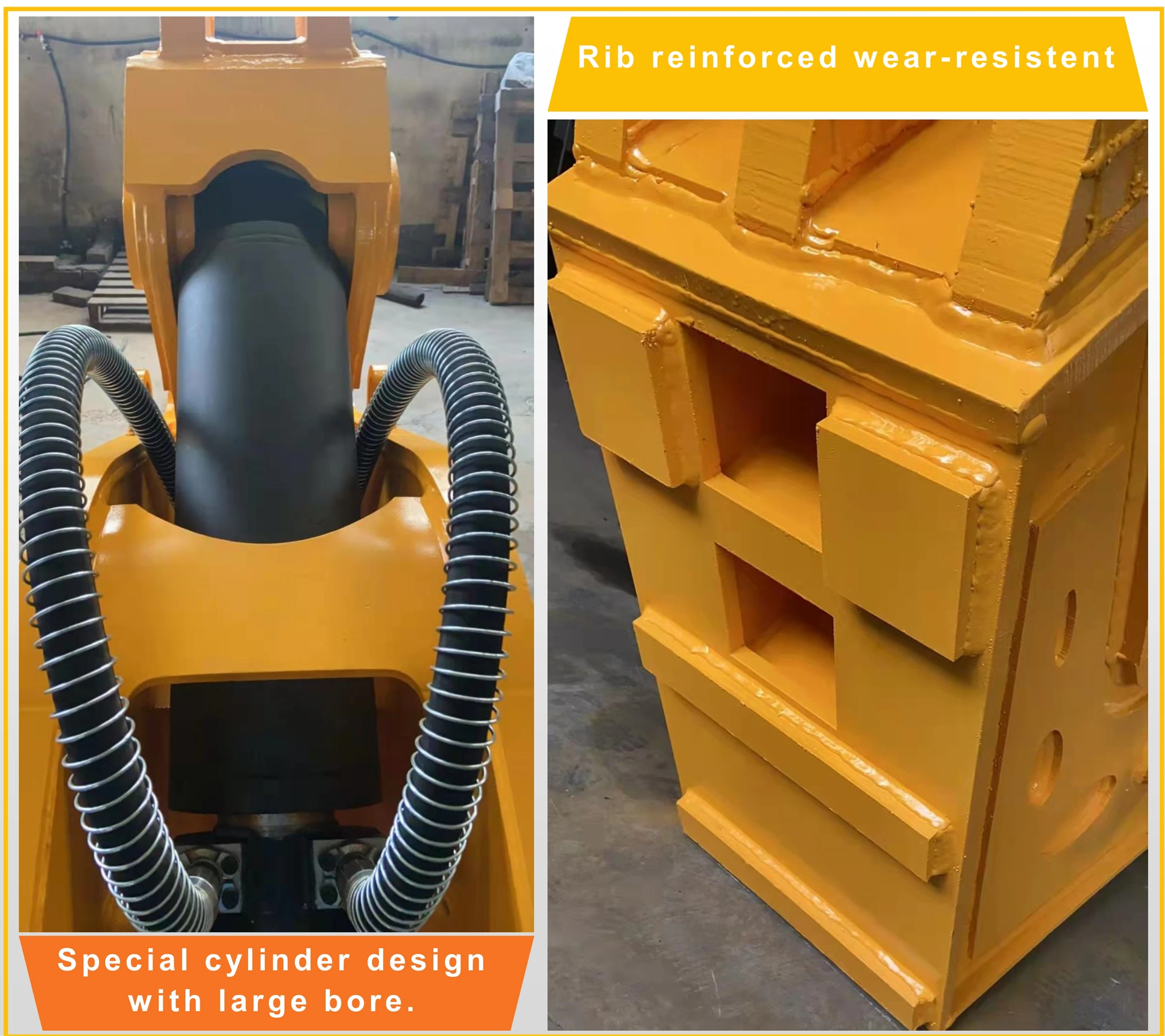

Large cylinder and piston for more cutting force
Cylinder Mounted speed valve for faster cycle times
Replaceable cutting edge, both sides can be use which save cost.

Specification of Demolition Pulverizer

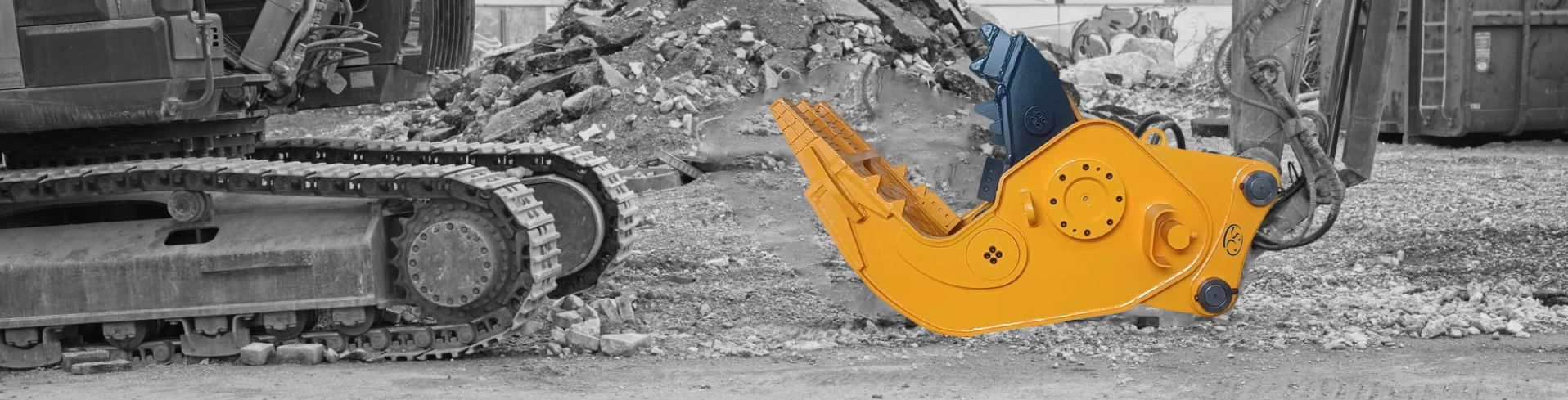

Demolition Pulverizer With One Cylinder

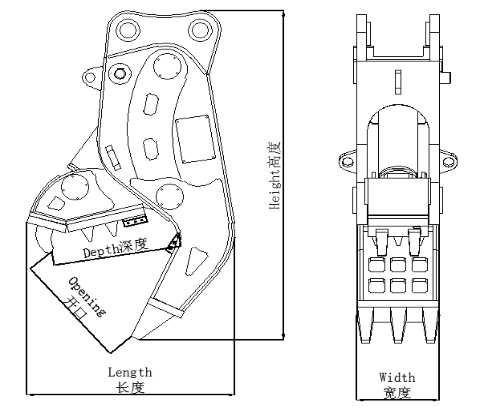

Item/Model		Unit	SC10	SC15	SC20	SC30
Suitable excavators		Ton	4-9	10-18	22-35	32-40
Weight		KG	580	750	1350	2550
Opening		mm	510	660	700	1100
Depth		mm	500	700	800	1200
Height		mm	1400	1850	1950	2910
Width		mm	400	425	540	720
Length		mm	960	1220	1170	1720
Rated pressure		Kg/cm³	300	300	320	320
Rated flow		L/min	200	220	240	280
Crushing Force	Middle	Ton	80	80	80	150
Crushing Force	Tip	Ton	40	50	55	80
Cycle time	Open	sec	2	2	2.2	2.2
Cycle time	Close	sec	2.1	2.2	2.5	2.5
