Log Grapple

Name: Log Grapple
Brand: YANTAI SC EQUIPMENT CO.,LTD.

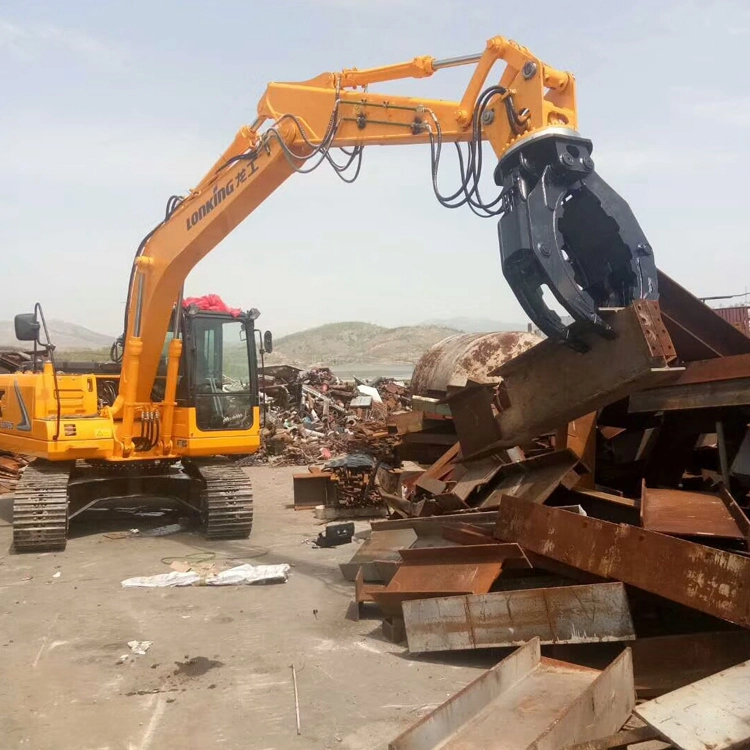

With 360° rotation, SC hydraulic grapples for excavators are ideal for handling the toughest of forestry applications and construction works, including. Grubbing, Working On a Row, clearing land, Feeding a Grinder/Chipper, Handling High Volume Of Logs and stone or material handling. Equipped with high quality Switzerland rotary motor, HALLITE oil seal, SC hydraulic log grapple increase your efficiency and outlift the competition every time.

Inquiry

Features Specification Images Video

Features of hydraulic Grapple

360 degrees of continuous rotation.
Switzerland rotary motor is more durable and safe
Edges are built with heavy duty hardened steel
Our rigid quality control during manufacturing ensures reliability and consistency.
Our electronic diverter valve option eliminates the need for expensive secondary auxiliary hydraulics

Specification of hydraulic Grapple

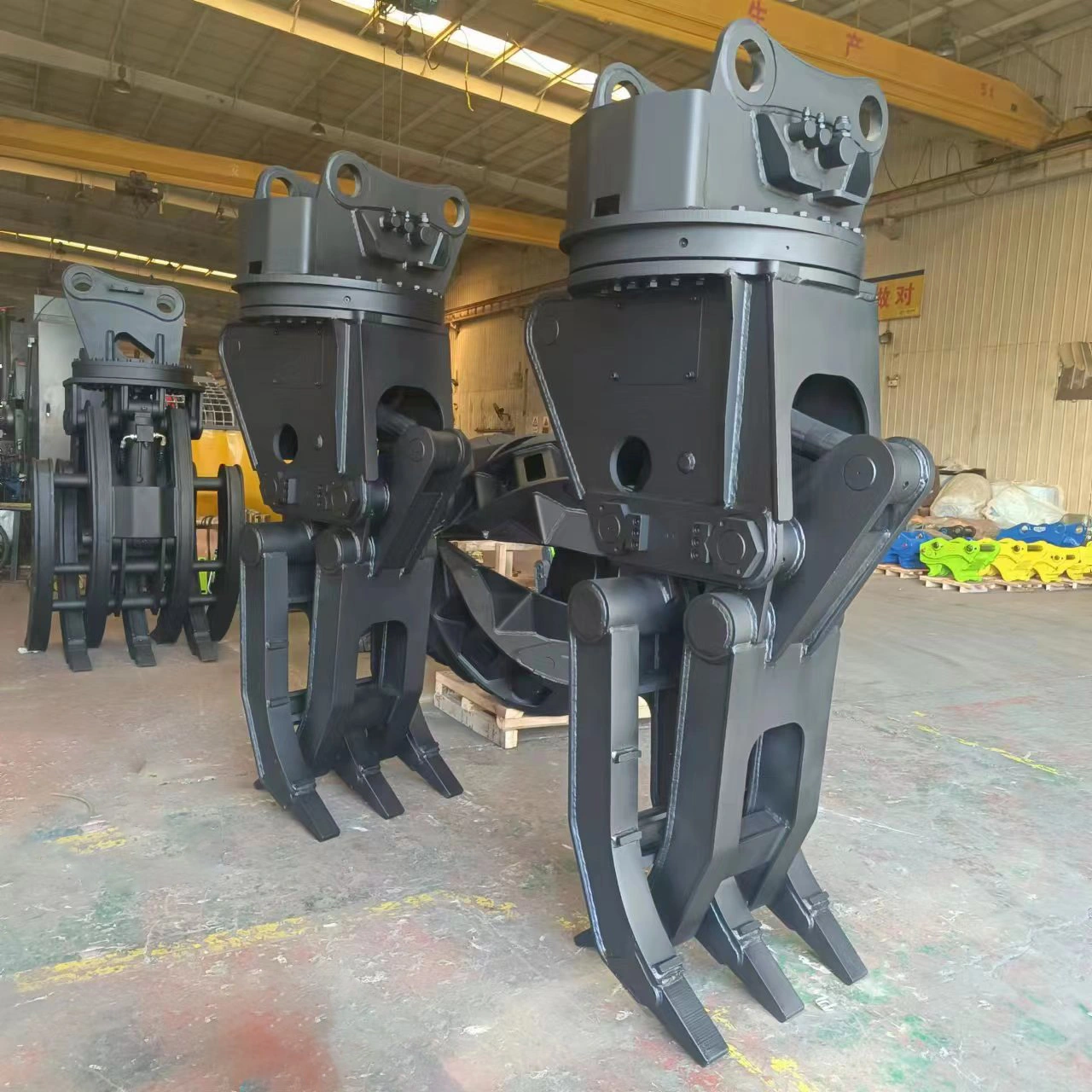

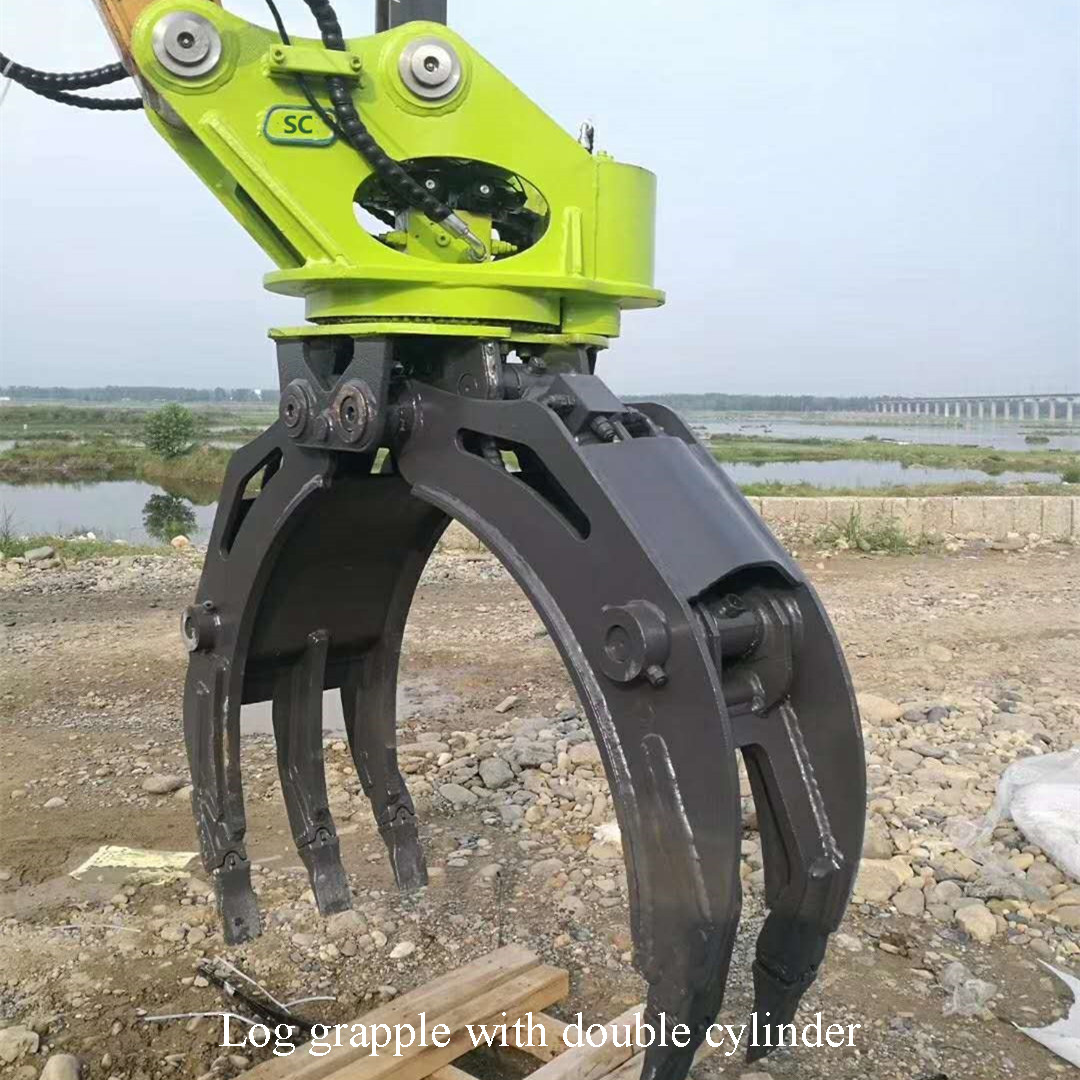

Log grapple with double cylinder
Item/model	Unit	SC02D	SC04D	SC06D	SC08D	SC10D	SC14D	SC20D
Weight	kg	320	390	740	1380	1850	1900	2300
Max jaw opening	mm	1300	1400	1800	2300	2500	2500	2700
Oil pressure	kg/cm²	110-140	120-160	150-170	160-180	160-180	180-200	180-200
Set up pressure	kg/cm²	170	180	190	200	210	250	250
Operating flow	L/min	30-55	50-100	90-110	100-140	130-170	200-250	250-320
Cylinder volume	ton	4.0x2	4.5x2	8.0x2	9.7x2	12x2	12x2	14x2
Suitable excavator	ton	4-6	7-11	12-16	17-23	24-30	31-40	41-50

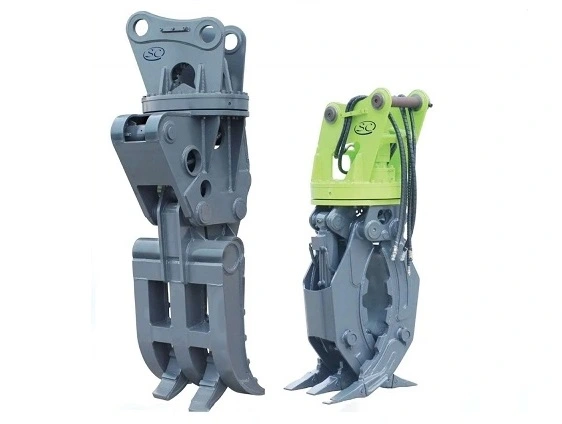

Log grapple with double cylinder Log grapple with single cylinder

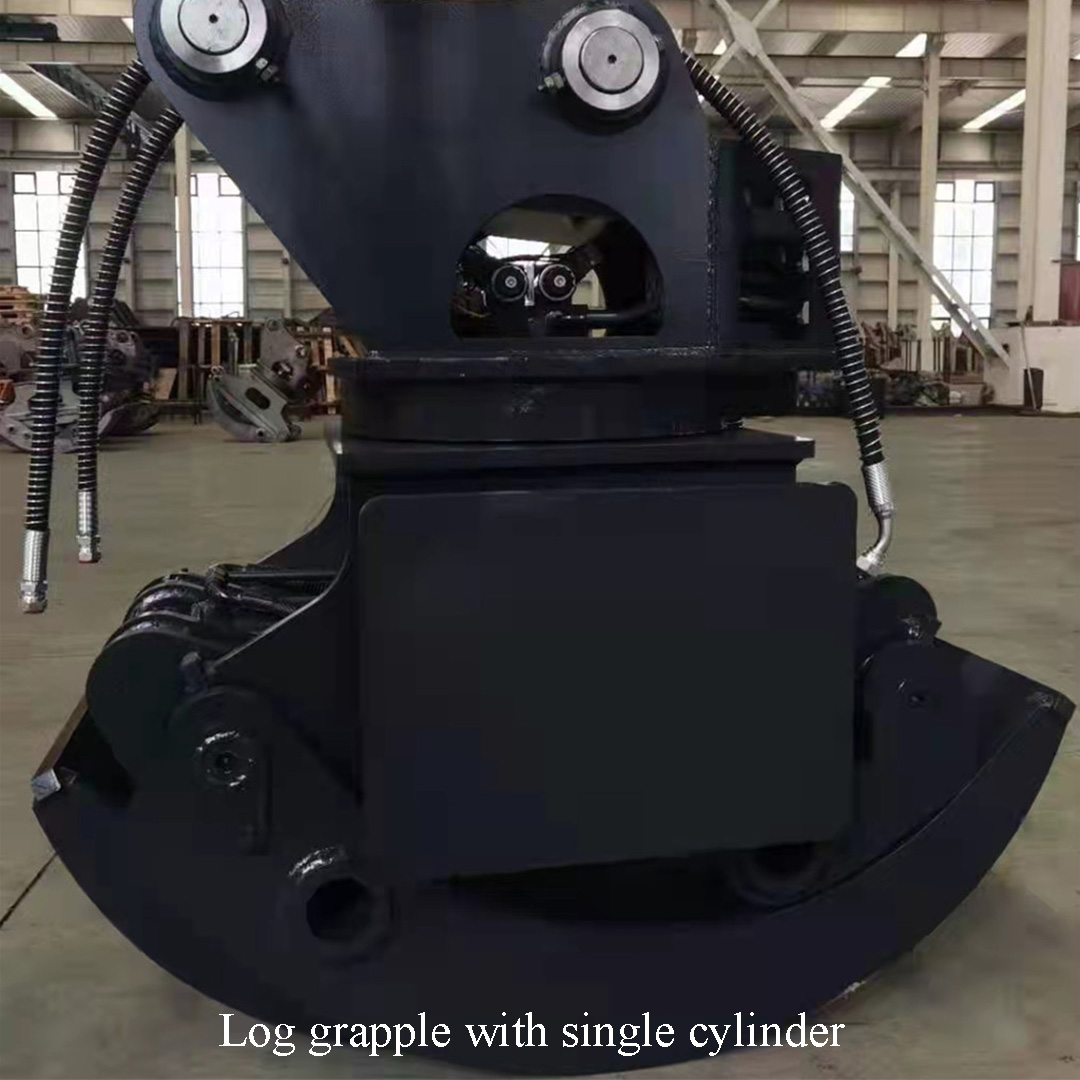

Log grapple with single cylinder
Item/model	Unti	SC02S	SC04S	SC06S	SC08S	SC10S
Weight	kg	200	350	710	1250	1450
Max jaw opening	mm	1200	1400	1700	2200	2300
Oil pressure	kg/cm²	110-140	120-160	150-170	160-180	160-180
Set up pressure	kg/cm²	120	120	120	120	120
Operating flow	L/min	30-55	50-100	90-110	100-140	130-170
Cylinder volume	ton	4.0x1	8.0x1	8.0x1	9.7x1	12.0X1
Suitable excavator	ton	4-6	7-11	12-16	17-23	24-30
