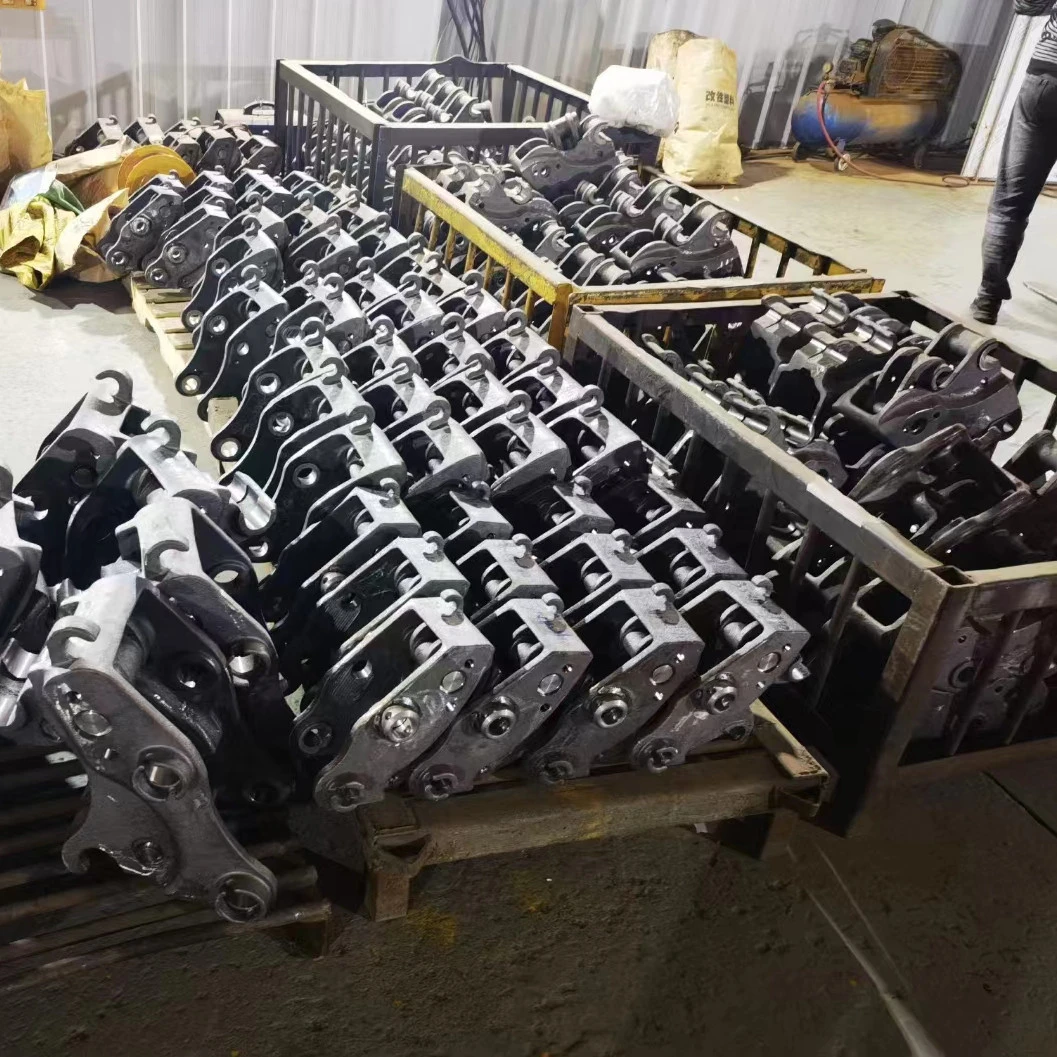

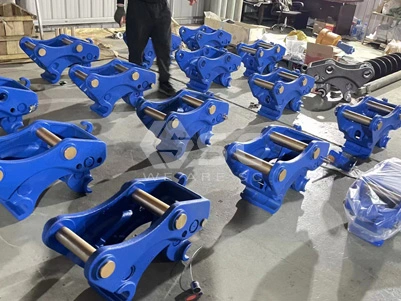

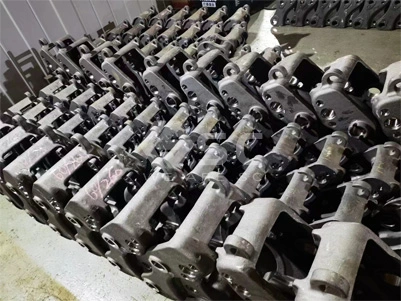

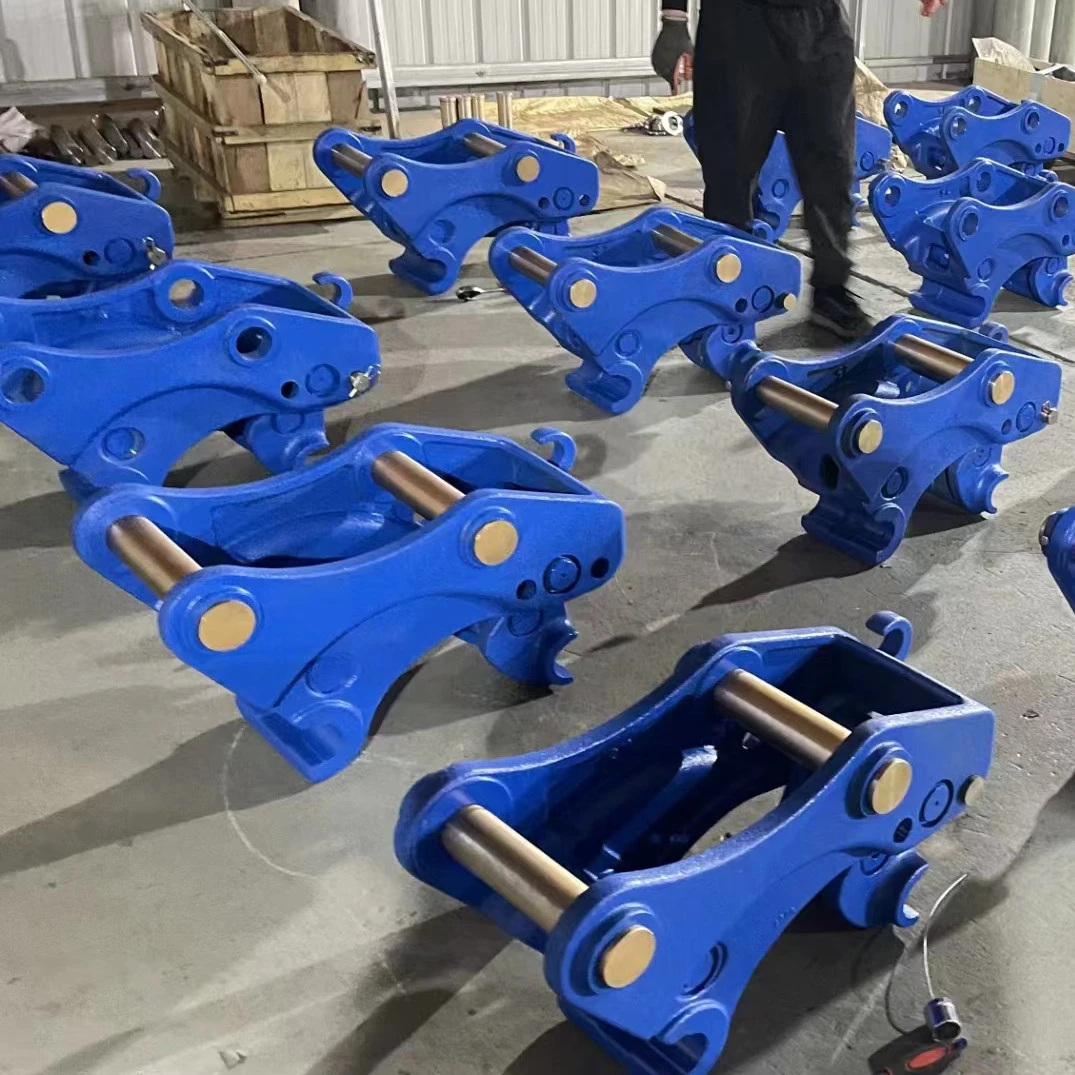

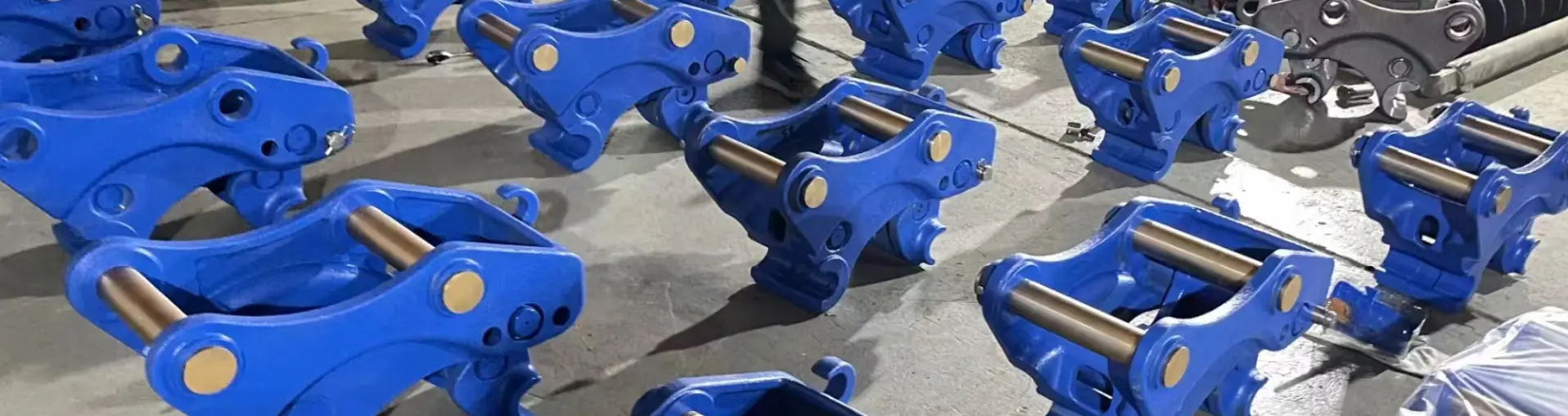

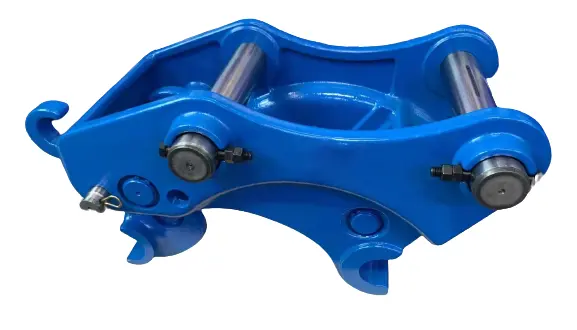

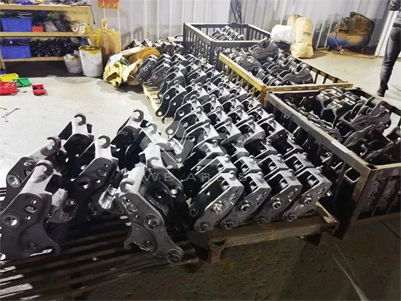

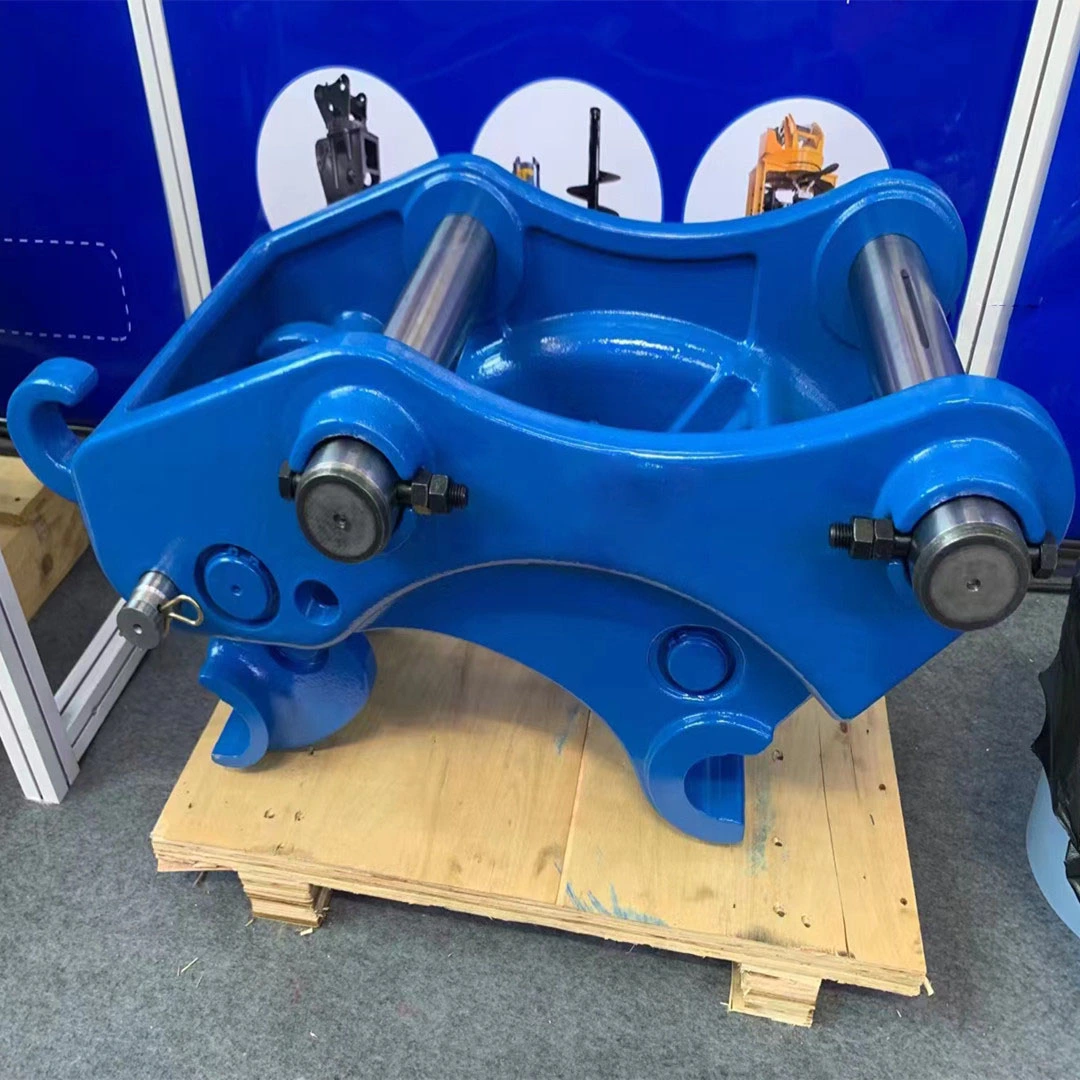

The cast quick coupler is specially for 2-16ton excavators, all the body is integrated casting, no welding, which is more durable than common one. Any fracture within 1years, we will send new one to you.
More durable due to all casting body
Service life can be double than common quick coupler
Make excavators work faster with more flexibly and efficiency
| For 1-3.5t mini excavators | |||||||||||||||

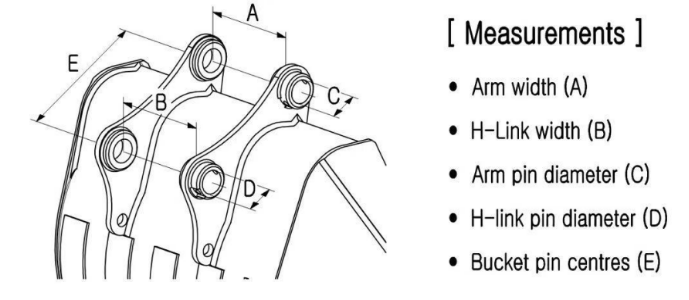

| Pin diameter/mm C D | 30 | 30 | 30 | 30 | 30 | 35 | 35 | 35 | 40 | 40 | 40 | 40 | 35 | 35 | 35 |
| Ears distance/mm A B | 95 | 105 | 110 | 105 | 120 | 110 | 120 | 125 | 120 | 125 | 135 | 140 | 135 | 140 | 145 |
| Pin to pin centre distance/mm E | 100 | 130 | 140 | 110 | 130 | 140 | 185 | 185 | 185 | 185 | 185 | 185 | 185 | 185 | 195 |
| For 4-16t excavators | |||||||||||||||
| Pin diameter/mm C D | 45 | 45 | 50 | 50 | 50 | 50 | 50 | 50 | 60 | 65 | 60 | 65 | |||
| Ears distance/mm A B | 155 | 165 | 170 | 180 | 187 | 200 | 220 | 230 | 225 | 225 | 260 | 275 | |||
| Pin to pin centre distance/mm E | |||||||||||||||
SC Equipment also manufacturer excavator tilt rotator and excavator tilt hitch with high quality and wide applications.
| quick coupler | |
| CAT | Cat excavator quick coupler |
| DOOSAN | Doosan quick coupler |
| HITACHI | Hitachi quick coupler |
| KOBELCO | Kobelco quick coupler |
| KOMATSU | Komatsu quick coupler |
| SANY | Sany quick coupler |
| TAKEUCHI | Takeuchi excavator quick coupler |
| VOLVO | Volvo excavator quick coupler |
| YANMAR | Yanmar quick coupler |
