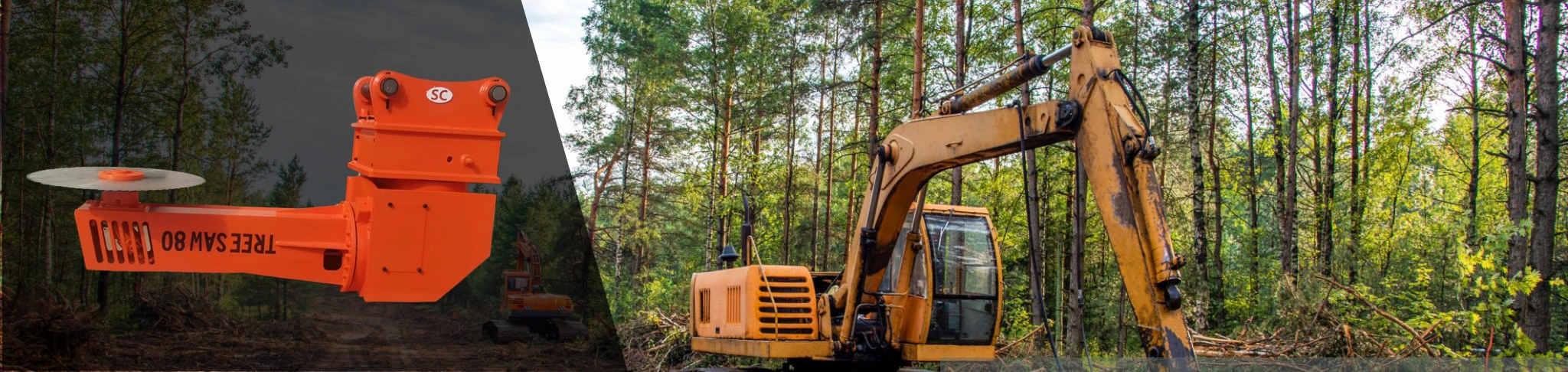

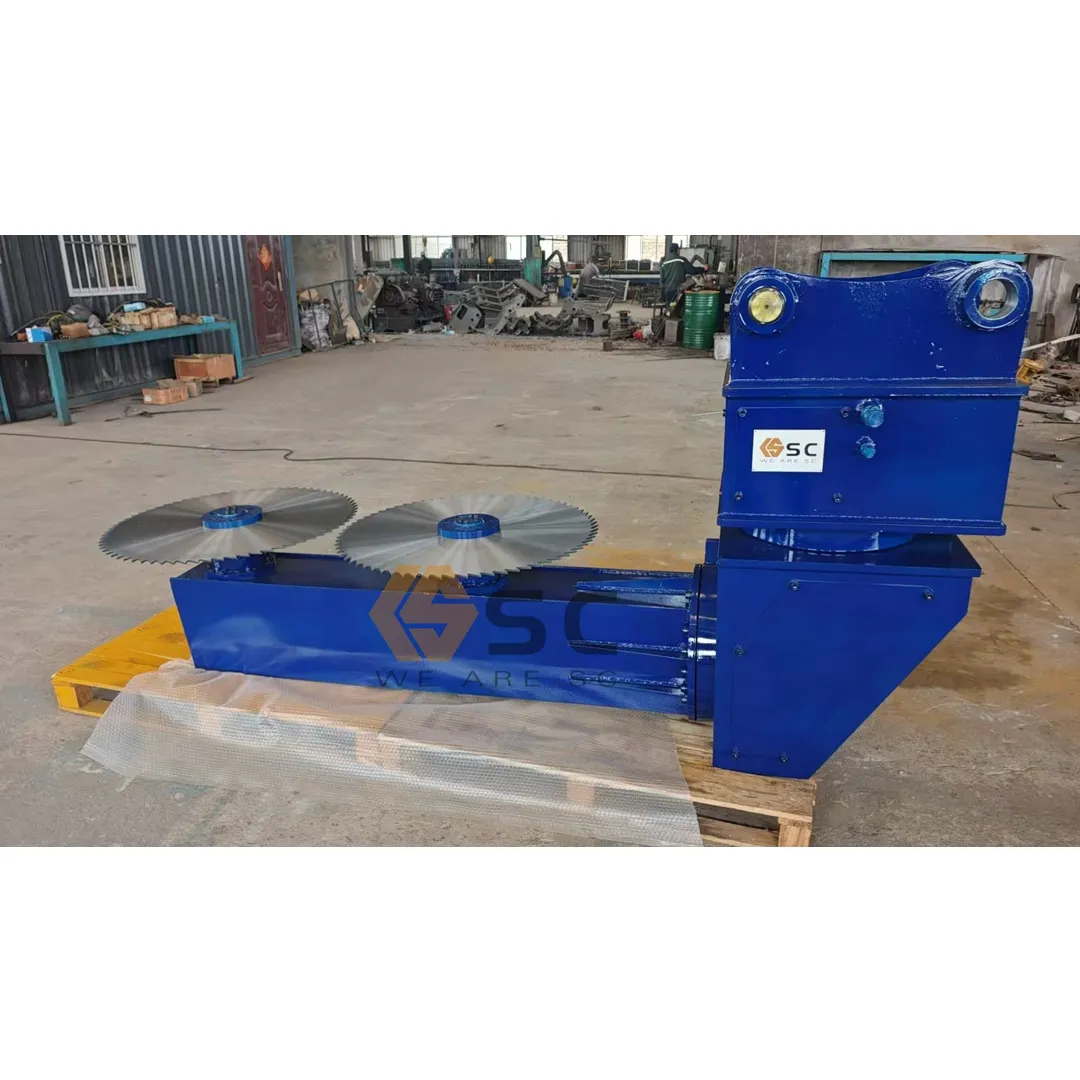

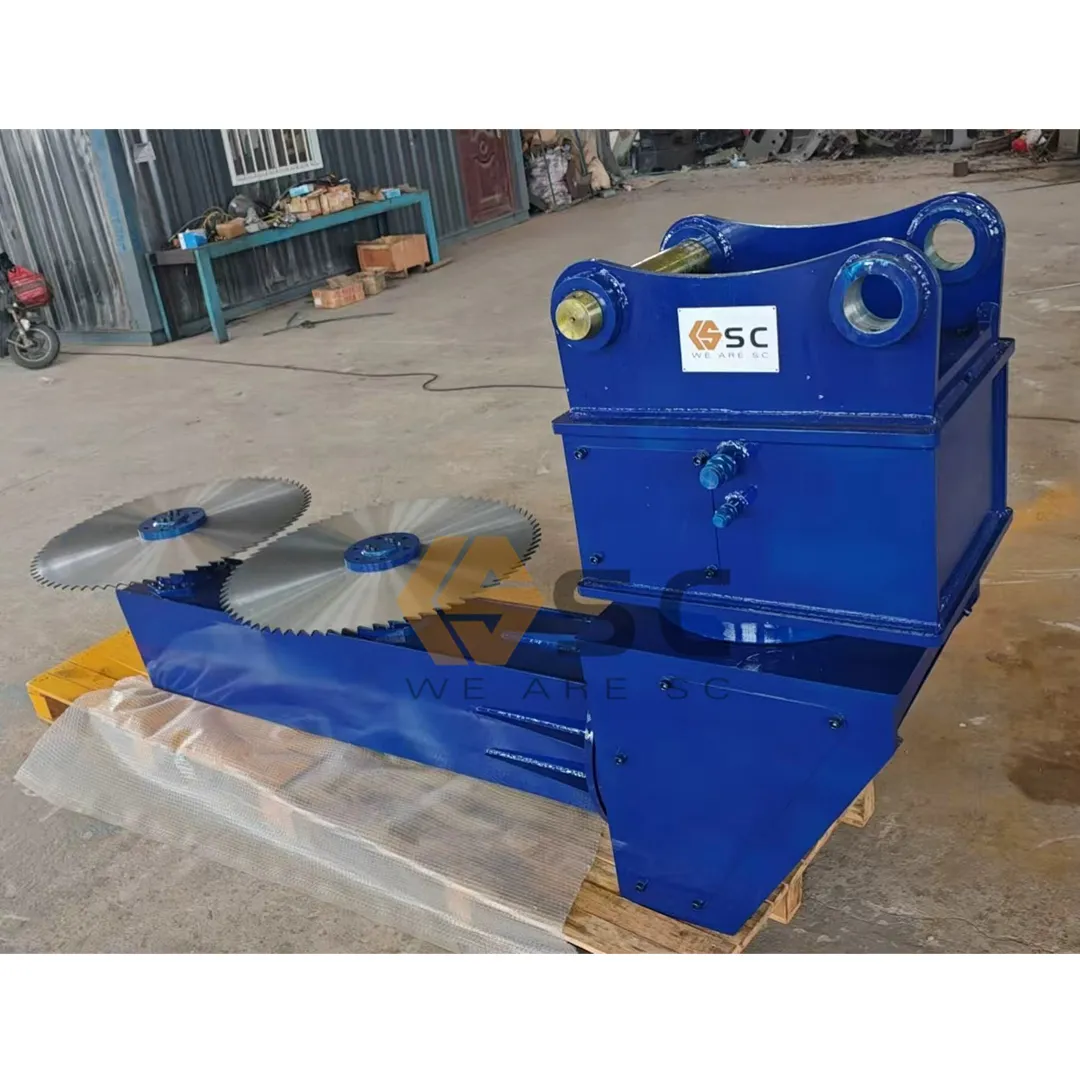

SC tree shear with saw is a hydraulic-driven saw with a rotating cutting head for your excavator. it is Ideal attachment for cutting overgrown hedges, Loping Tree bows, Felling Trees and Scrub Clearance.
The high-speed circular blade with 800-1000mm diameter for improved durability and precise cuts. With both 360 degree horizontal rotation and 360 degree vertical rotation, the cutting head offers precision and control to make quick and clean work of trimming and limbing.
SC has custom selection of excavator tree shear for sale at competitive price, inquiry now!

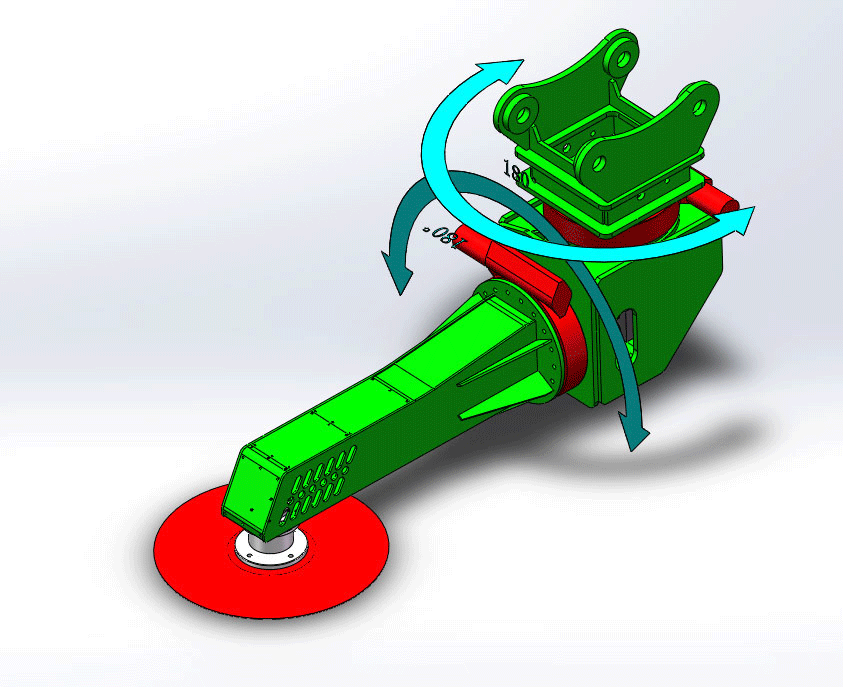

With both 360 degree horizontal rotation and 360 degree vertical rotation.
Superior blade system with multi-blade or single-blade.
Dedicated to cutting back at maximum height of the trimmer’s reach.
High speed cleaning, trimming and limbing of branches.
Compatible with all brands of excavator range from 5-36 ton.
| Specification/Model | SC08 | SC10 | SC20 | SC30 |
| Excavator range/ton | 5-12 | 8-20 | 15-22 | 25-36 |
| Standard blade diameter/mm | 600 | 600 | 800 | 800 |
| Max flow-continuous/Lpm | 80-120 | 100-150 | 120-180 | 150-230 |
| Max torque-continuous/Nm | 500 | 630 | 4300 | 7300 |
| Max pressure-continuous/Mpa | 25 | 25 | 25 | 25 |
| Max pressure Oil-return /Mpa | 20 | 20 | 20 | 20 |
| Max power-continuous/Kw | 13 | 30 | 59 | 100 |
| Max Spindel speed-continuous/Rpm | 2400 | 2200 | 750 | 420 |
| Max Cutting depth/mm | 250 | 250 | 325 | 325 |
| Operating weight/Kg | 125 | 460 | 1250 | 1560 |

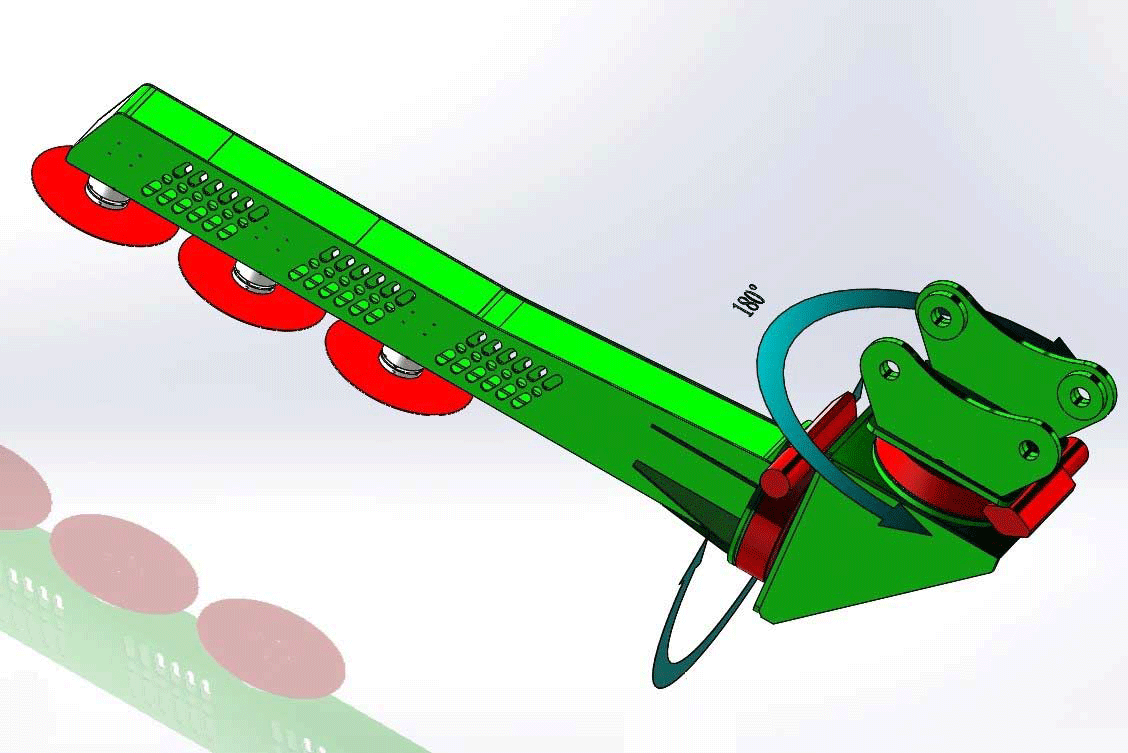

Three blades type is available.
