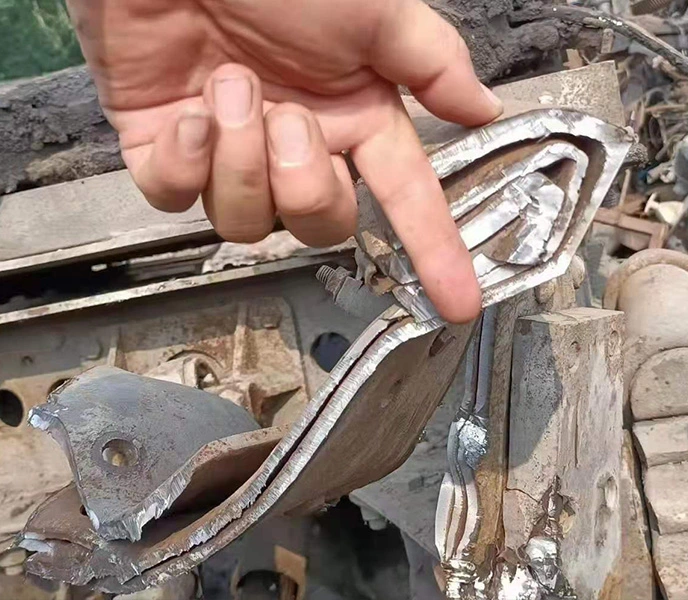

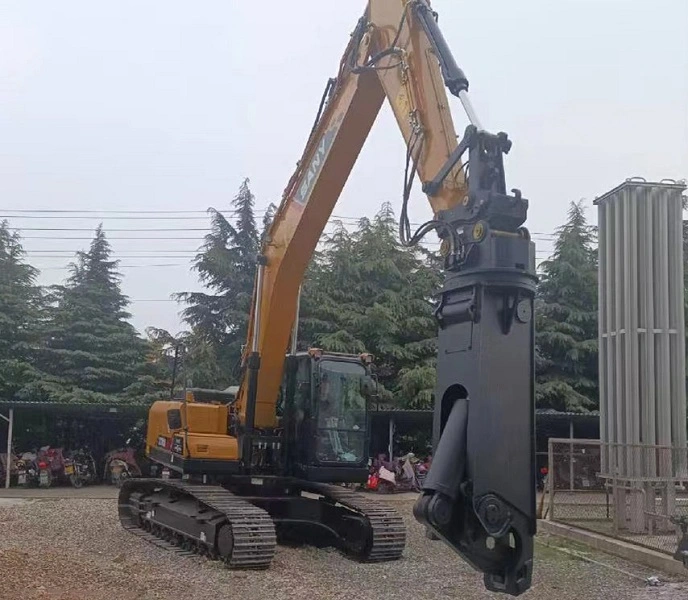

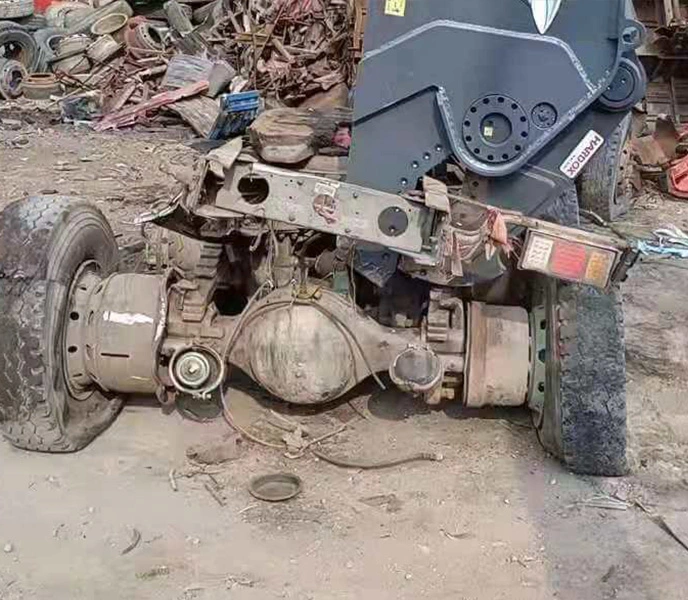

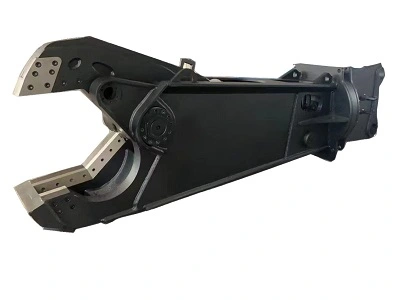

Hydraulic shear also called scrap mobile shears, excavator shears, Metal excavator shear attachment can cut everything from structural steel to mixed scrap, tire on salvage recycling yard. Excavator metal shear is also used for dismantling projects such ships, airplanes and offshore decommissioning. The excavator metal shear is mobile so it can be moved from one location to another, and available in a wide range of sizes to fit a variety of carriers. Excavator shear designed with exceptional performance, excavator metal shear has fast cycle times, outstanding durability, and impressive cutting force, SC hydraulic shear provide the production and reliability you need to be profitable.
The high bore of reversed cylinder offers great cutting power.
Forged cylinder rod assure a better functionality.

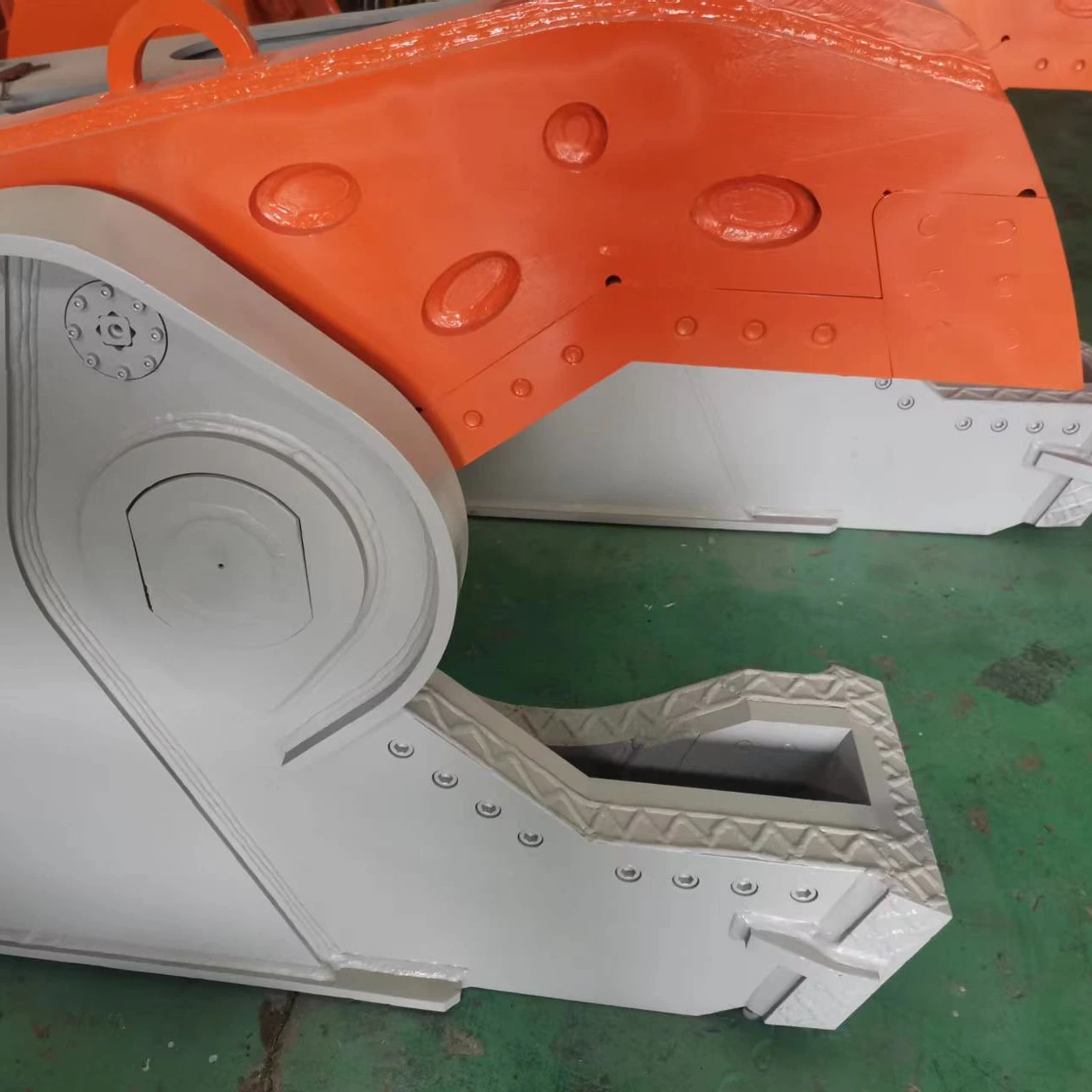

Rhomboid cutting edge can be turned 4 times before replacement which save your cost.
Speed valve reduces cycle times by 30% to increase productivity.
Twin guides for the movable jaw, ensures perfect alignment
Heavy duty pivot components contribute to the durability and long life expectancy
360° Rotation reduces processing time through improved manipulation of tool & material

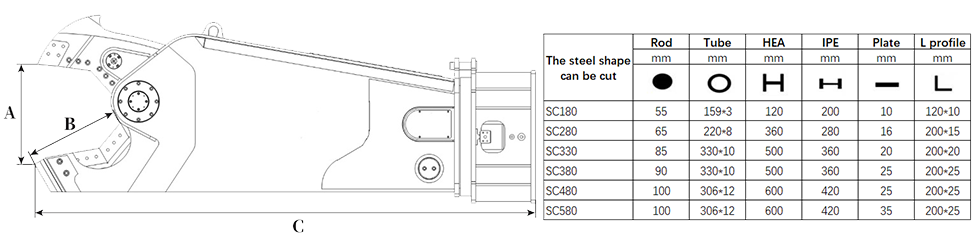

| Model | Excavator weight /ton | Working pressure | Oil flow | Weight /ton | Rotating flow | Rotating pressure | A | B | C |
| SC180 metal excavator shear attachment | 13-17 | 250-300 | 90-110 | 1100 | 30-40 | 90-100 | 375 | 395 | 2100 |
| SC280 metal excavator shear attachment | 20-25 | 250-300 | 180-220 | 2100 | 30-40 | 100-115 | 485 | 525 | 2700 |
| SC330 metal excavator shear attachment | 25-33 | 300-320 | 200-250 | 3000 | 30-40 | 100-115 | 595 | 630 | 3200 |
| SC380 metal excavator shear attachment | 33-40 | 320-350 | 200-250 | 3500 | 30-40 | 100-115 | 620 | 600 | 3280 |
| SC480 metal excavator shear attachment | 40-48 | 320-350 | 250-300 | 4900 | 30-40 | 100-115 | 700 | 720 | 3700 |
| SC580 metal excavator shear attachment | 51-65 | 320-350 | 275-375 | 5800 | 30-40 | 100-115 | 780 | 780 | 3700 |
| SC780 metal excavator shear attachment | 68-90 | 320-350 | 500-600 | 7800 | 50-60 | 140-150 | 860 | 850 | 4000 |
