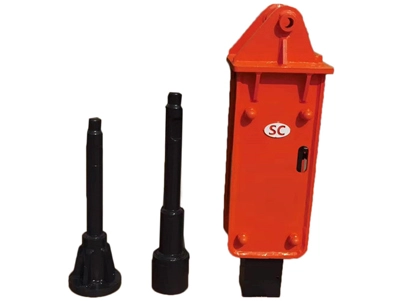

Post Pile Driver

Name: Post Pile Driver
Brand: YANTAI SC EQUIPMENT CO.,LTD.

Developed in conjunction with hydraulic breaker, post pile driver become the best tool for post pile installation, it can work on almost all types of posts like wood, steel, concrete, aluminum, T-bar, H-beam. Our SC post pile driver can connect quickly to skid steer, excavator & truck crane, and we can customize various size of pole caps to fit your piles. Utilizing SC post pile driver in your project will leave you with durability, low-maintenance, as well as increased savings on time and money.

Inquiry

Features Specification Video & Images

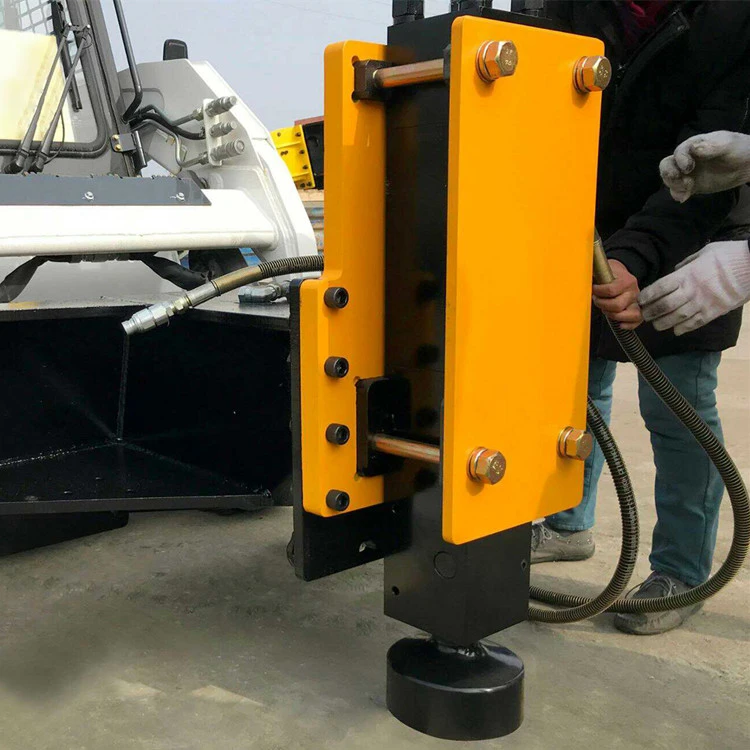

Features of Excavator post pile driver

Works on most types of posts – without damaging them.

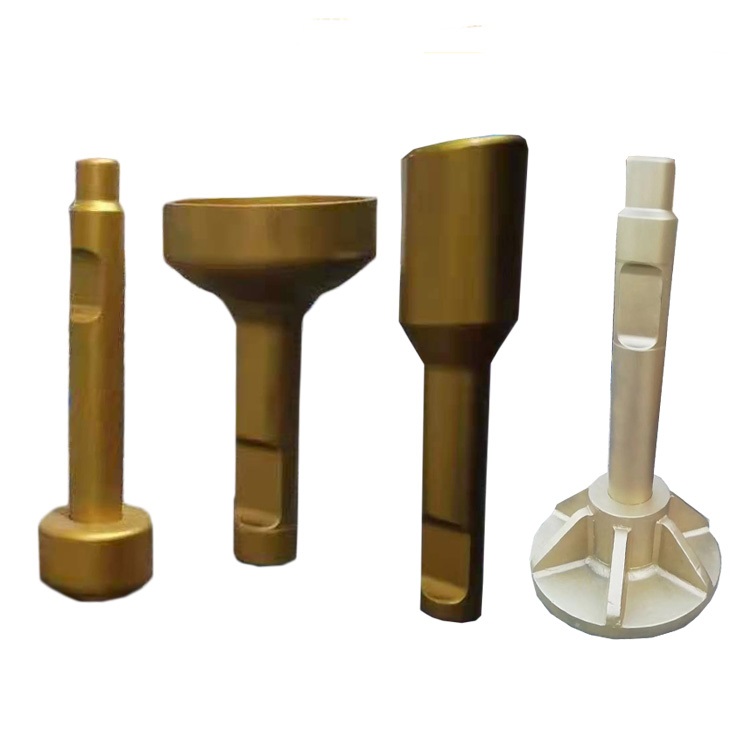

Supply several various sized “Pole Caps” at no charge.
Easily installs posts like wood, steel, concrete, aluminum, T-bar, H-beam.
Any length of pile is possible— dictated by Excavator and Boom Truck reach parameters
Customization available for your unique application

Specification of Excavator post pile driver

MODEL	TOTAL WEIGHT kg	OIL FLOW RANGE l/min	OPERATING PRESSURE kg/cm2	IMPACT RATE bpm	IMPACT ENERGY KG L/M	CHISEL/TOOL DIAMETER mm	Excavator ton
SCB350	62	14-30	85-120	600-900	28	35	0.5-1.5
SCB450	140	20-30	80-100	600-1200	30	45	1.2-3
SCB530	174	25-50	90-120	500-1000	33	53	2.5-4.5
SCB680	395	40-70	110-140	500-900	70	68	4-7
SCB750	475	50-90	120-150	400-800	92	75	6-10
SCB1000	988	80-110	150-170	350-700	214	100	11-15
SCB1350	1775	100-150	160-180	350-600	363	135	18-21
SCB1400	2026	120-180	160-180	350-500	429	140	20-26
SCB1550	2738	180-240	160-180	350-450	663	155	28-35
SCB1650	3410	200-260	160-180	250-400	918	165	30-40
SCB1750	4387	210-290	160-190	200-350	1224	175	40-55

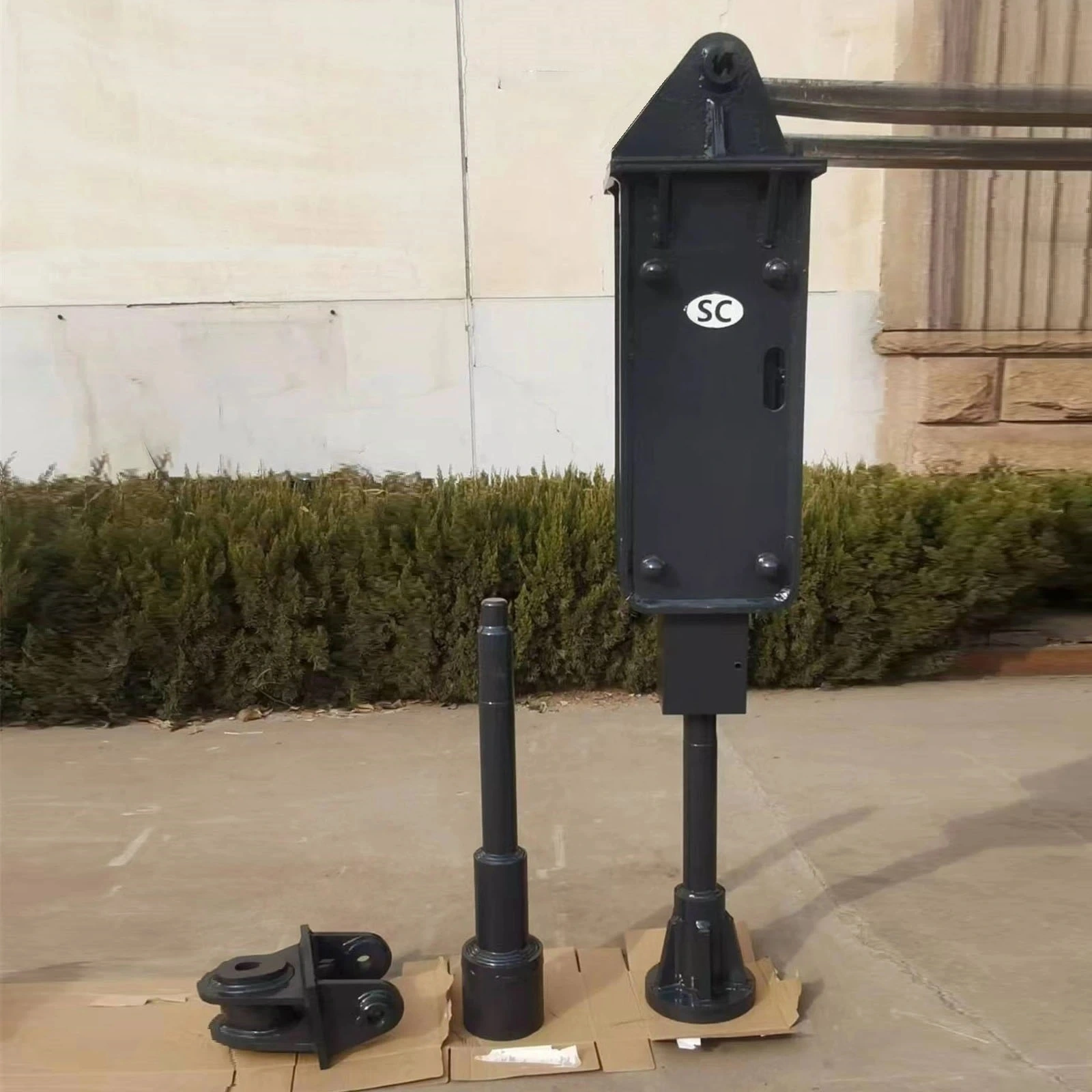

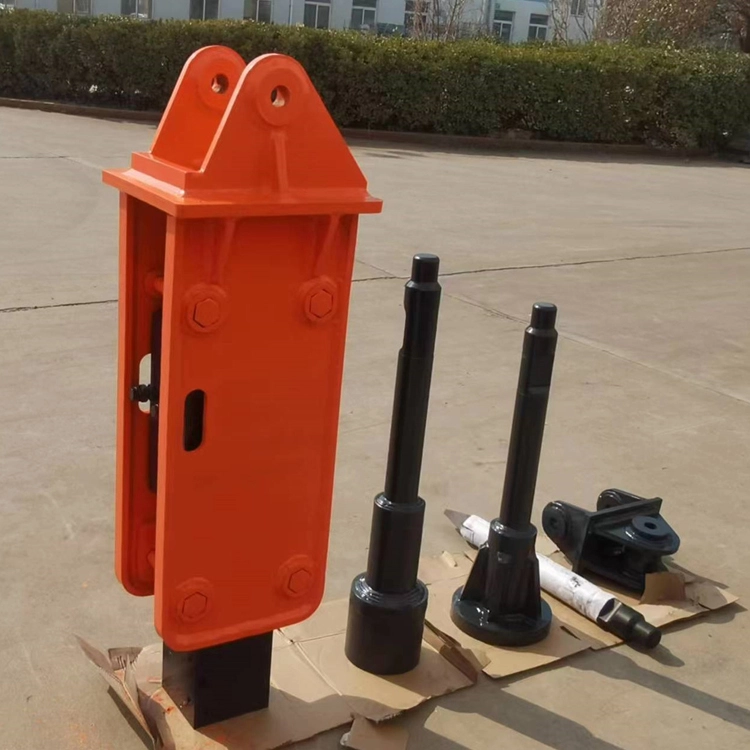

The related accessories contains: Pole cap, one tool kit, seal kit, hose, N2 container and charging kits.
