Excavator Rock Saw

Name: Excavator Rock Saw
Brand: YANTAI SC EQUIPMENT CO.,LTD.

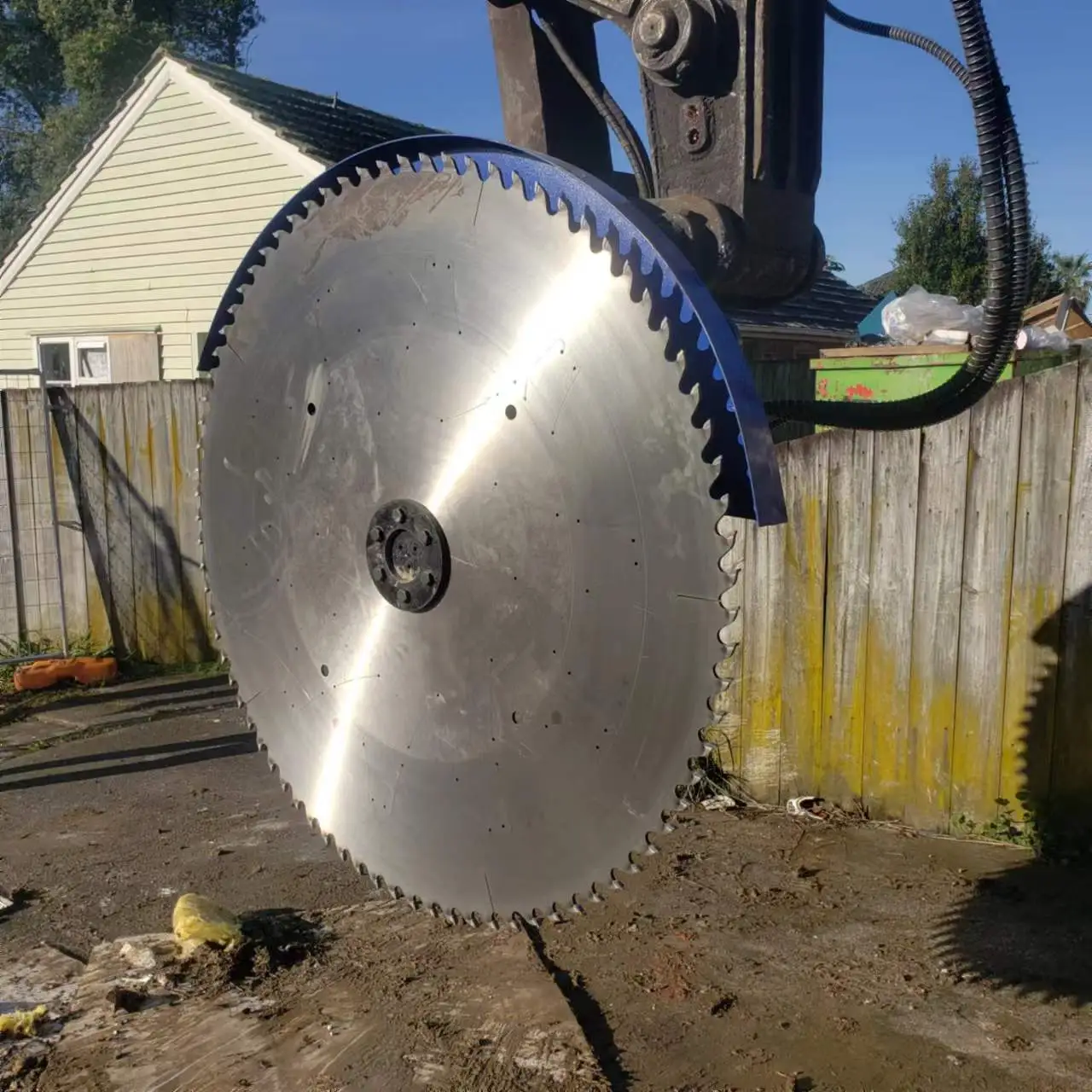

Excavator Rock Saws are widely appropriate for construction, demolition, mining and quarry. Designed to cut asphalt, granite, limestone, sandstone, concrete with bar, aluminum, ductile iron, steel, and many other materials, We have different blades for these materials and ranging from 600mm to 3000mm diameter. These blades can be tipped with diamond segments to extend more service life. SC rock saw can be changed from vertically cutting to horizontally cutting by adjusting the mounting adaptor, and for vertical cutting, there is also 360 degrees rotation without moving the excavator which increase the efficiency and productivity greatly. SC rock cutting saw easily attaches to your excavator or skid steer in minutes, providing quick and effective rock cutting. Models for 1- 45 ton excavators is available.

Inquiry

Features Specification Video

Features of Excavator Rock Saw

360 degrees rotation for vertical cutting
Both cutting vertically and horizontally is available
Max 3000mm diameter of blade, cutting depth up to 1400mm.
Different blades can cut stone, concrete, steel, wood
Instant brake system for more safety
Rotating shield helps to minimise dust pollution

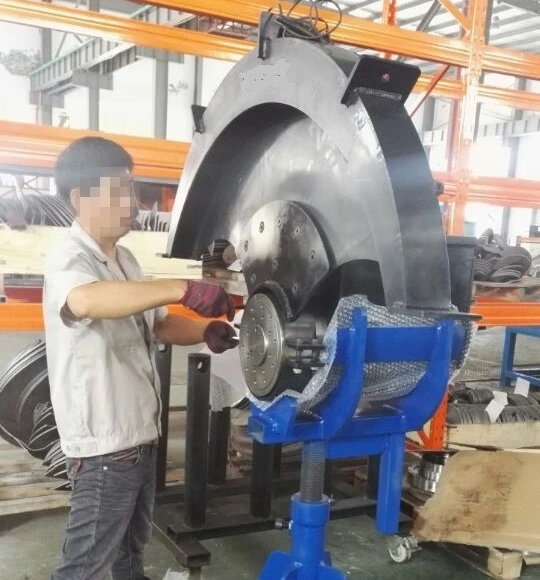

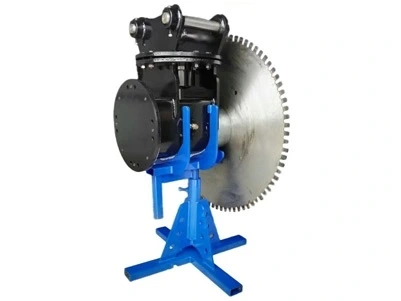

Heavy duty stand, useful for storing and transport
cutting efficiency, rapid brake system, cutting clockwise and counter clockwise.
Easily attach to excavators, skid steers, backhoes

Specification of Excavator Rock Saw

PARAMETER/MODEL	Unit	SC03	SC08	SC15	SC35	SC45
tonnage of excavator	T	1.5-3	4.5-8	10-15	20-35	30-45
Motor displacement	ml	25	63	125	250	500
Maximum working pressure	Mpa	35	35	35	28	28
Maximum torque	Nm	140	342	700	1120	1880
Maximum power	Kw	28	57	81	95	155
Maximum flow rate	L\min	60	125	175	250	265
Minimum flow rate	L\min	40	63	88	120	136
Speed range	rpm	1600-2400	1000-1950	700-1400	470-1000	272-650
Diameter range of saw blade	mm	400-600	500-1200	800-1500	1200-2000	1800-3500
Cutting radius loss	mm	100	125	165	200	250
Reference Weight (without Saw Blades)	Kg	35	135	350	450	680
Continuous feed	m/min	0.75-1.5

Specification of Excavator Rock Saw

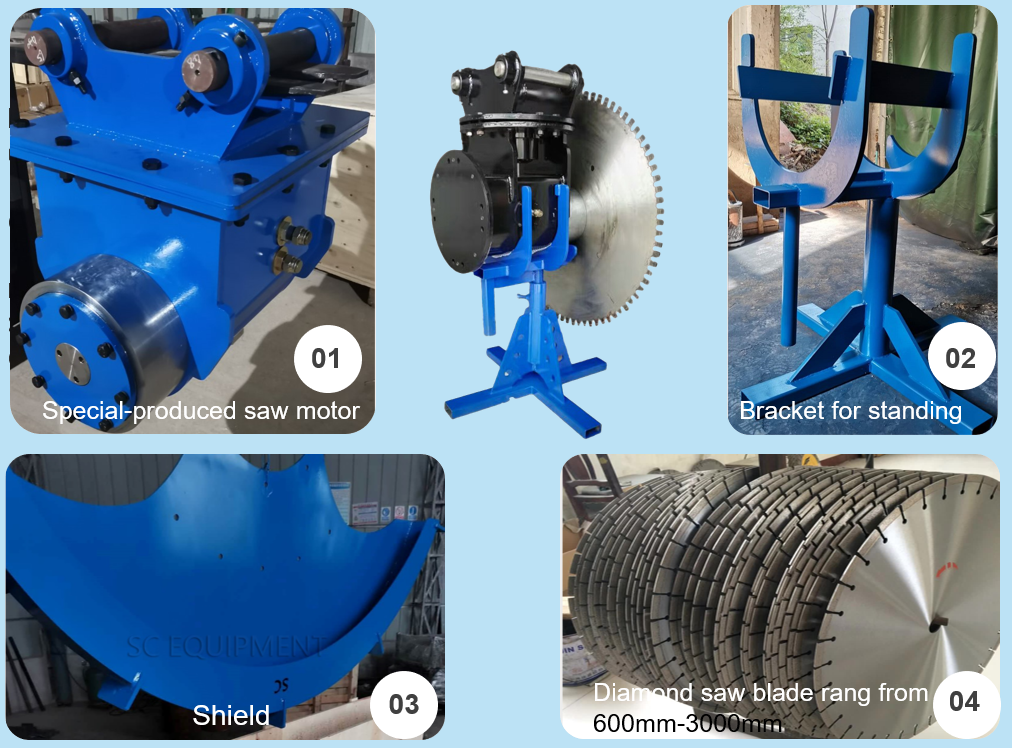

One Set of Saw Dev Ice Including These Parts

FAQ for the Excavator Rock Saw

1. Q: How do I choose suitable model of rock saw?

A. What's your excavator model (weight)?

B. What are you going to cut? Concrete, marble, wood, aluminum or what's rock? That will be different blade.

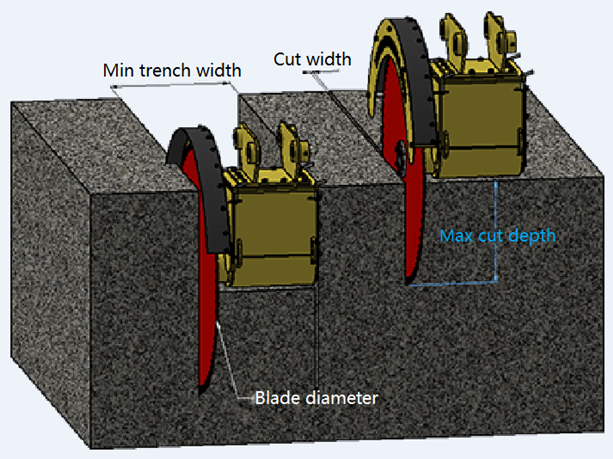

C. What's the cutting depth do you want? (See Photo 1)

After knowing these, we can recommend a suitable saw model with right blade to fit your requested cutting depth.

2. Q: Can your saw spin in reverse and brake?

Yes, both.

3. Q: Can your saw head rotary with 360 degree?

Yes, we have rotary type with 360 degree.

4. Q: Can your saw do horizontal as well as vertical cuts?

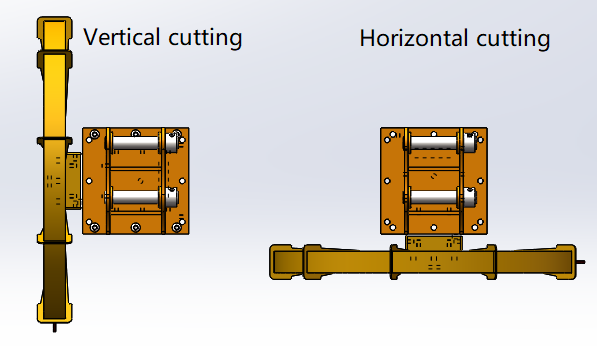

Yes, it can be adjust to horizontal status as photo 2.

5. Q: Tell me about the cutting segments-what's materials are they consist of, and how durable and long lasting are they?

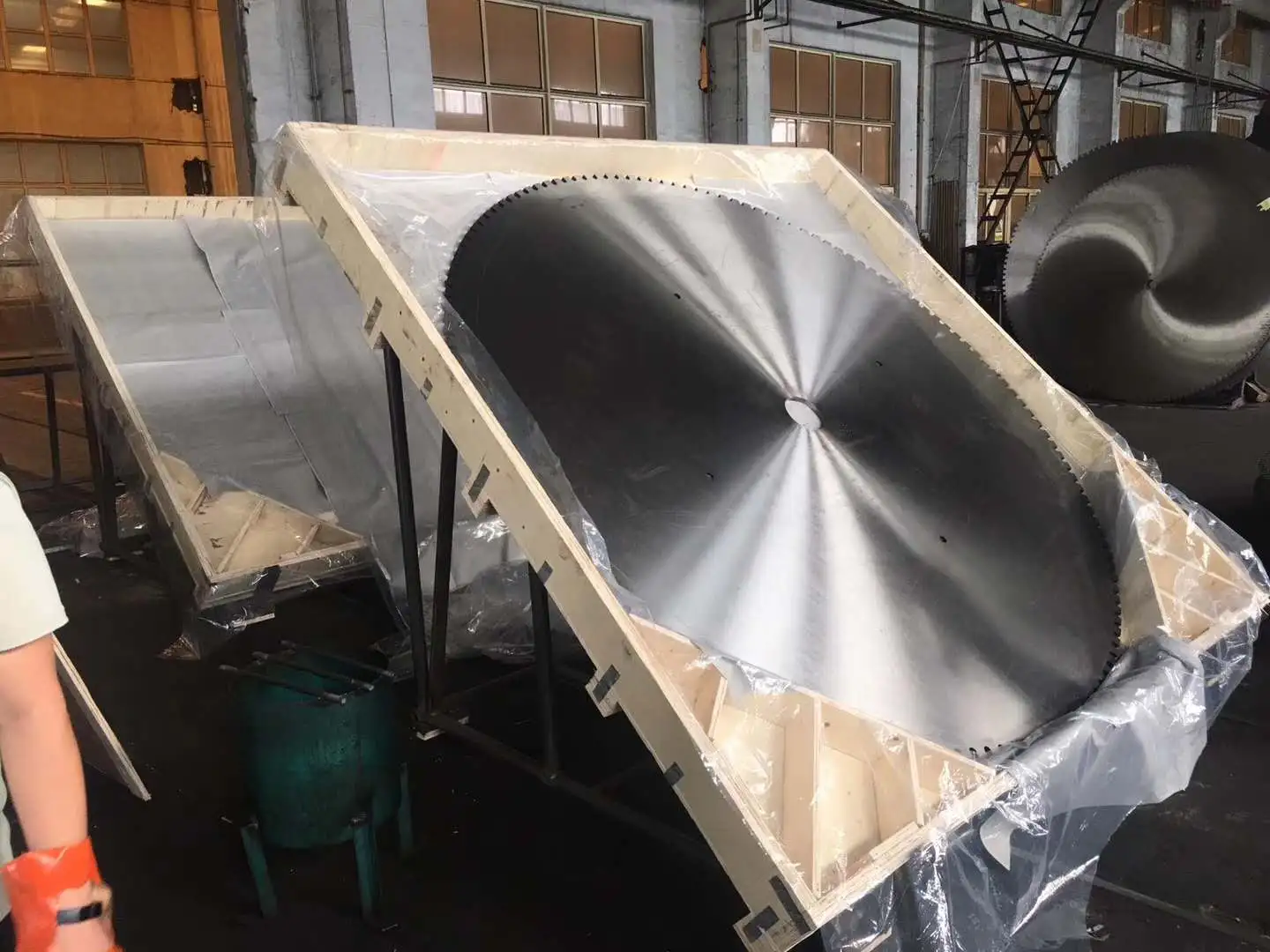

The material of diamond blade is 50Mn2v or 75Cr1, it is seldom damage and can be lasting many years. The cutting segments is consumable parts, its material is diamond alloy. It can be weld to the blade by special welding machine.
